The recommended PCB layout involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing thermal vias under the device to dissipate heat. A thermal pad on the bottom of the device should be connected to a thermal plane or a heat sink to ensure efficient heat dissipation.
To ensure reliable operation, it's essential to follow the recommended operating conditions, including voltage and current ratings. Additionally, consider the device's thermal characteristics, and ensure proper thermal management and heat dissipation. It's also crucial to follow the recommended storage and handling procedures to prevent damage.
The SI82390BD-IS is a sensitive device and requires proper ESD protection during handling and assembly. It's recommended to follow standard ESD handling procedures, such as using an ESD wrist strap or mat, and storing the devices in anti-static packaging. The device should be handled in a controlled environment with humidity and temperature control.
The SI82390BD-IS is a commercial-grade device, and its use in high-reliability or safety-critical applications should be carefully evaluated. It's recommended to consult with Skyworks Solutions Inc or a qualified reliability engineer to assess the device's suitability for such applications and to discuss any necessary qualifications, testing, or documentation requirements.
Potential failure modes include overheating, electrical overstress, and physical damage. To mitigate these risks, ensure proper thermal management, follow the recommended operating conditions, and handle the device with care. It's also essential to implement adequate protection circuits, such as overvoltage protection and overcurrent protection, in the system design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SI82390BD-IS Overview

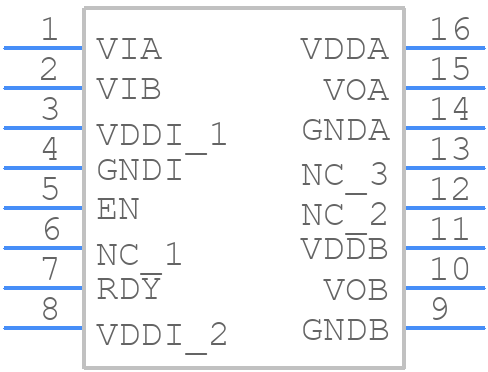

Use the download button to access the SI82390BD-IS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI823,
or try a keyword search, such as MOSFET Drivers
