Skyworks provides a recommended PCB layout guide in their application note AN2013-01, which includes guidelines for component placement, trace routing, and grounding to ensure optimal performance and minimize electromagnetic interference (EMI).
The SI82394CD-IS has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB to dissipate heat. Additionally, ensure good airflow around the device and consider using thermal interface materials (TIMs) to improve heat transfer.
The datasheet recommends using a 50-ohm termination for the input and output signals to ensure proper impedance matching and minimize signal reflections. Additionally, consider using a series resistor and capacitor for input termination to filter out high-frequency noise.
The SI82394CD-IS is a broadband device that can operate across multiple frequency bands. To configure the device for a specific frequency band, adjust the external matching components (e.g., inductors, capacitors) and biasing resistors according to the recommended values provided in the datasheet or application notes.
The SI82394CD-IS has an operating temperature range of -40°C to +125°C, but the device's performance may degrade at extreme temperatures. Ensure that the device is operated within the recommended temperature range to maintain optimal performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SI82394CD-IS Overview

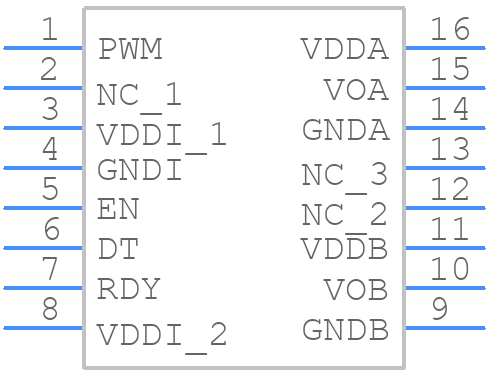

Use the download button to access the SI82394CD-IS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI823,
or try a keyword search, such as MOSFET Drivers
