SI823H7CD-IS3 - Skyworks

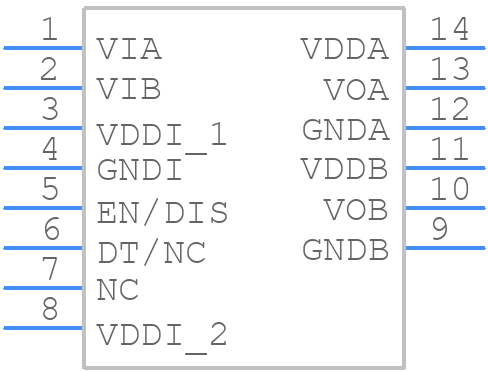

SI823H7CD-IS3 Details

• Manufacturer Part Number:

  SI823H7CD-IS3

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  SOIC-14

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Skyworks Solutions Inc

• YTEOL:

  8.38

• High Side Driver:

  YES

• Interface IC Type:

  BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER

• JESD-30 Code:

  R-PDSO-G14

• Length:

  10.3 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  2

• Number of Terminals:

  14

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Output Peak Current Limit-Nom:

  4 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Equivalence Code:

  SOP14,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  2.65 mm

• Supply Current-Max:

  4.75 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  3 V

• Supply Voltage1-Max:

  30 V

• Supply Voltage1-Min:

  5.5 V

• Supply Voltage1-Nom:

  12 V

• Surface Mount:

  YES

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  40

• Turn-off Time:

  0.116 µs

• Turn-on Time:

  0.116 µs

• Width:

  7.5 mm
