SI8261BAC-C-IS - Skyworks

Description: Gate Drivers 3.75 kV opto-driver replacement in SOIC8

Download SI8261BAC-C-IS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

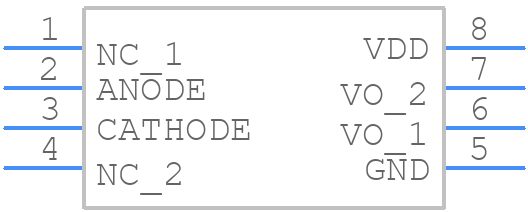

Symbol
SI8261BAC-C-IS - Skyworks - PCB symbol
click to zoom
PCB Footprints
SI8261BAC-C-IS - Skyworks PCB footprint - Small Outline Packages - Small Outline Packages - 8-Pin SOIC
click to zoom
3D Models
SI8261BAC-C-IS - Skyworks - 3D model - Small Outline Packages - 8-Pin SOIC
click to zoom

SI8261BAC-C-IS Details

  • Manufacturer Part Number:

    SI8261BAC-C-IS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Skyworks Solutions Inc

  • YTEOL:

    8

  • High Side Driver:

    NO

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    4 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    2.7 mA

  • Supply Voltage-Max:

    30 V

  • Supply Voltage-Min:

    6.5 V

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.05 µs

  • Turn-on Time:

    0.06 µs

  • Width:

    3.9 mm

SI8261BAC-C-IS Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode choke or a ferrite bead to filter the input power.
  • Ensure the input voltage is within the recommended range (2.5V to 5.5V). Use a stable voltage regulator to power the device. Decouple the input voltage with a 10uF capacitor and a 100nF capacitor in parallel.
  • The maximum current rating of the SI8261BAC-C-IS is 1A. However, it's recommended to derate the current to 0.8A for reliable operation.
  • Use a TVS diode or a zener diode to protect the input from overvoltage. Add a series resistor to limit the input current. Use a capacitor to filter the input voltage.
  • The recommended operating temperature range for the SI8261BAC-C-IS is -40°C to 125°C. However, the device can operate up to 150°C with reduced performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SI8261BAC-C-IS Overview

Use the download button to access the SI8261BAC-C-IS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI826, or try a keyword search, such as MOSFET Drivers
