A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode choke or a ferrite bead to filter the power supply.
Ensure the VCC pin is connected to a stable 3.3V or 5V power supply, and the VEE pin is connected to a stable -5V or -3.3V power supply. Use a voltage regulator or a voltage reference to generate the required bias voltages.
The SI8271GBD-IS can support data rates up to 100 Mbps, but the actual data rate achieved depends on the specific application, PCB layout, and signal integrity.
Use an oscilloscope to measure the signal waveforms and check for signal integrity issues. Use a spectrum analyzer to measure the noise floor and identify sources of noise. Check the PCB layout and ensure that the signal traces are properly routed and terminated.
The SI8271GBD-IS is rated for operation up to 125°C, but the actual operating temperature range depends on the specific application and the thermal design of the system. Ensure proper thermal management and heat sinking to prevent overheating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
Si8271GBD-IS Overview

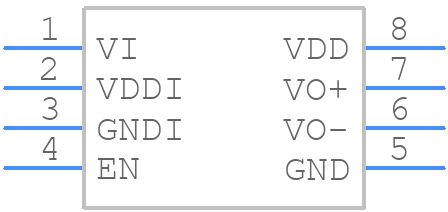

Use the download button to access the Si8271GBD-IS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like Si827,
or try a keyword search, such as MOSFET Drivers
