SI8380P-IU - Skyworks

Description: Digital Isolators 2.5 kV 8-channel PLC input isolator

Download SI8380P-IU Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

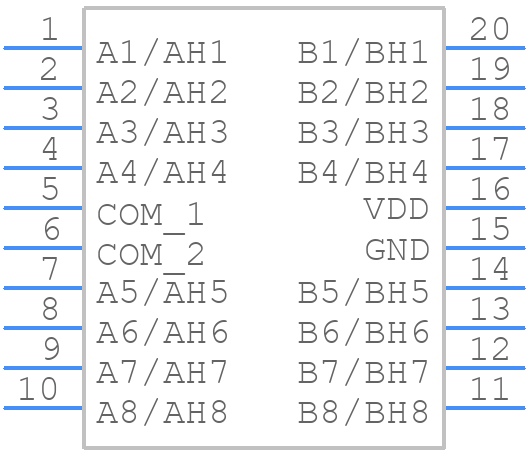

Symbol
SI8380P-IU - Skyworks - PCB symbol
click to zoom
PCB Footprints
SI8380P-IU - Skyworks PCB footprint - Small Outline Packages - Small Outline Packages - 20-pin QSOP
click to zoom
3D Models
SI8380P-IU - Skyworks - 3D model - Small Outline Packages - 20-pin QSOP
click to zoom

SI8380P-IU Details

  • Manufacturer Part Number:

    SI8380P-IU

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QSOP-20

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Skyworks Solutions Inc

  • Interface IC Type:

    DIGITAL I/P MODULE

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    8.66 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    8

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.25 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3.91 mm

SI8380P-IU Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the center of the board, and the input and output tracks should be kept short and away from noise sources.
  • The device requires a single 3.3V power supply, and the VCC pin should be decoupled with a 10uF capacitor to ground. The EN pin should be tied to VCC or a digital signal to enable the device.
  • The SI8380P-IU can support data rates up to 1.5 Gbps, but the actual data rate may be limited by the system design and the quality of the transmission channel.
  • Use an oscilloscope to check the input and output signals, and verify that the device is properly biased and configured. Check the datasheet for specific troubleshooting guidelines and application notes.
  • The SI8380P-IU is rated for operation up to 85°C, but the device may degrade or fail if operated above this temperature. Consult the datasheet for specific temperature ratings and derating information.
