SI8380S-IU - Skyworks

Description: Digital Isolators 2.5 kV 8-channel PLC input isolator with SPI output interface

Download SI8380S-IU Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

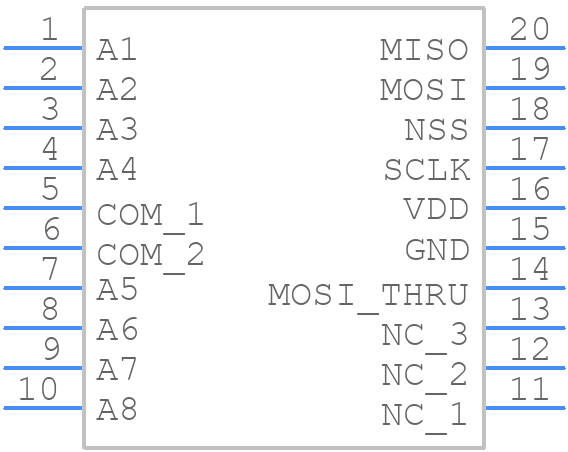

SI8380S-IU - Skyworks - PCB symbol
click to zoom
PCB Footprints
SI8380S-IU - Skyworks PCB footprint - Small Outline Packages - Small Outline Packages - 20-pin QSOP
click to zoom
3D Models
SI8380S-IU - Skyworks - 3D model - Small Outline Packages - 20-pin QSOP
click to zoom

SI8380S-IU Details

  • Manufacturer Part Number:

    SI8380S-IU

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QSOP-20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Skyworks Solutions Inc

  • Interface IC Type:

    DIGITAL I/P MODULE

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    8.66 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.25 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    3.91 mm

SI8380S-IU Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode choke or a ferrite bead to filter the power supply.
  • Ensure the VCC pin is connected to a stable 3.3V power supply, and the VEE pin is connected to a stable -3.3V power supply. Use a voltage regulator or a voltage reference to generate the required voltages.
  • The SI8380S-IU can support data rates up to 1.5 Gbps, but the actual data rate may be limited by the system design, PCB layout, and signal integrity.
  • Use an oscilloscope to measure the signal waveforms and power supply noise. Check the PCB layout for signal integrity issues, and ensure the power supply is stable and well-regulated. Consult the datasheet and application notes for troubleshooting guidelines.
  • The SI8380S-IU is rated for operation up to 85°C, but the device may degrade or fail if operated above the recommended temperature range. Ensure proper thermal management and heat sinking to maintain a safe operating temperature.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SI8380S-IU Overview

Use the download button to access the SI8380S-IU schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI838, or try a keyword search, such as Other Interface ICs
