SI8380S-IUR - Skyworks

Description: Digital Isolators 2.5kV PLC Input Isolator with SPI Outputs

Download SI8380S-IUR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

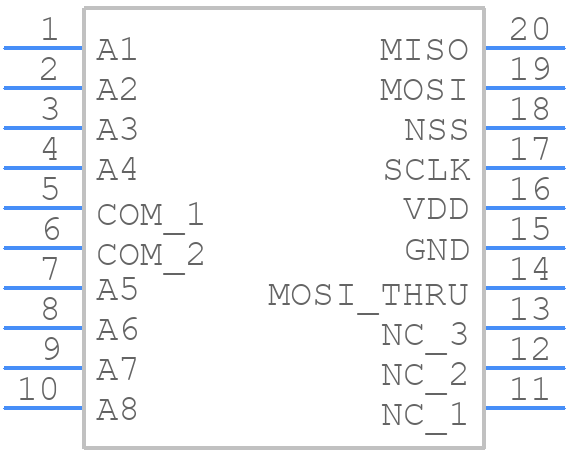

SI8380S-IUR - Skyworks - PCB symbol
click to zoom
PCB Footprints
SI8380S-IUR - Skyworks PCB footprint - Small Outline Packages - Small Outline Packages - 20-pin QSOP
click to zoom
3D Models
SI8380S-IUR - Skyworks - 3D model - Small Outline Packages - 20-pin QSOP
click to zoom

SI8380S-IUR Details

  • Manufacturer Part Number:

    SI8380S-IUR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QSOP-20

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Skyworks Solutions Inc

  • Interface IC Type:

    DIGITAL I/P MODULE

  • JESD-30 Code:

    R-PDSO-G20

  • Length:

    8.66 mm

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.25 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Width:

    3.91 mm

SI8380S-IUR Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the SI8380S-IUR involves keeping the input and output traces as short as possible, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is also recommended.
  • To ensure proper biasing, the SI8380S-IUR requires a stable voltage supply, and the input and output pins should be terminated with the recommended impedance. The device also requires a bias current of around 10mA to operate optimally.
  • The maximum operating frequency of the SI8380S-IUR is 1000 MHz, but it can be operated at higher frequencies with reduced performance. It's recommended to consult the datasheet and application notes for more information on frequency operation.
  • The SI8380S-IUR has a maximum junction temperature of 150°C. To ensure proper thermal management, it's recommended to use a heat sink or a thermal pad, and to keep the device away from other heat sources on the PCB.
  • The SI8380S-IUR has an ESD rating of 2kV human body model (HBM) and 100V machine model (MM). To ensure proper ESD protection, it's recommended to use ESD protection devices such as TVS diodes or ESD arrays on the input and output lines.
