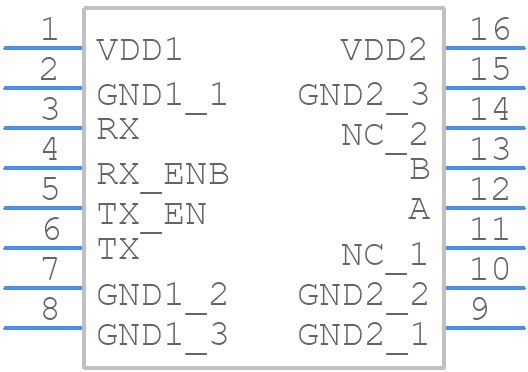

SI85853D-IS - Skyworks

SI85853D-IS Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance?
  A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and radiation. Refer to the Skyworks Application Note AN2011-01 for more details.
• How do I ensure reliable operation across the entire operating temperature range?
  Ensure proper thermal management by providing adequate heat sinking and airflow. Follow the recommended operating conditions and derating guidelines in the datasheet. Additionally, consider using a thermistor or temperature sensor to monitor the device temperature.
• What is the maximum allowable voltage on the EN pin?
  The maximum allowable voltage on the EN pin is 3.6V. Exceeding this voltage may cause damage to the device. It's recommended to use a voltage divider or a buffer circuit to ensure the EN pin voltage remains within the specified range.
• Can I use the SI85853D-IS in a switching regulator application?
  Yes, the SI85853D-IS can be used in switching regulator applications. However, ensure that the device is properly bypassed and decoupled to minimize noise and voltage transients. Follow the recommended layout and design guidelines in the datasheet and application notes.
• How do I troubleshoot issues with the device not turning on or off properly?
  Check the EN pin voltage and ensure it's within the specified range. Verify that the input voltage is within the recommended operating range. Also, check for any noise or voltage transients on the power supply lines. Use an oscilloscope to monitor the device's behavior and identify any potential issues.
