SI8602AC-B-ISR - Skyworks

Description: Digital Isolators 3.75 kV uni- and bi-directional isolator

Download SI8602AC-B-ISR Model

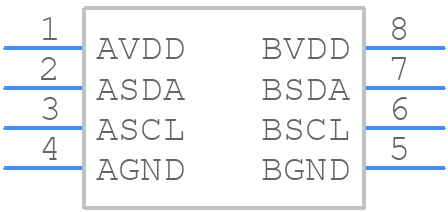

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SI8602AC-B-ISR - Skyworks PCB footprint - Small Outline Packages - Small Outline Packages - 8-Pin Narrow Body SOIC
click to zoom
3D Models
SI8602AC-B-ISR - Skyworks  - 3D model - Small Outline Packages - 8-Pin Narrow Body SOIC
click to zoom

SI8602AC-B-ISR Details

  • Manufacturer Part Number:

    SI8602AC-B-ISR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Skyworks Solutions Inc

  • Additional Feature:

    ALSO OPERARTES AT 5V SUPPLY

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm
