SI8630EC-B-IS1 - Skyworks

Description: Digital Isolator CMOS 3-CH 150Mbps Automotive 16-Pin SOIC N Tube

Download SI8630EC-B-IS1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

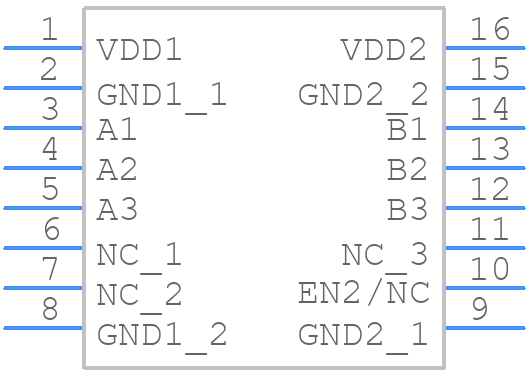

Symbol
SI8630EC-B-IS1 - Skyworks - PCB symbol
click to zoom
PCB Footprints
SI8630EC-B-IS1 - Skyworks PCB footprint - Small Outline Packages - Small Outline Packages - 16-Pin Narrow Body SOIC
click to zoom
3D Models
SI8630EC-B-IS1 - Skyworks - 3D model - Small Outline Packages - 16-Pin Narrow Body SOIC
click to zoom

SI8630EC-B-IS1 Details

  • Manufacturer Part Number:

    SI8630EC-B-IS1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Skyworks Solutions Inc

  • Interface IC Type:

    DIGITAL ISOLATOR

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    2A

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.5 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

SI8630EC-B-IS1 Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the SI8630EC-B-IS1 can be found in the Skyworks Solutions application note AN302A, which provides guidelines for PCB design, layout, and component placement to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The SI8630EC-B-IS1 output voltage can be configured using the VOUT pin, which is connected to a resistor divider network. By adjusting the resistor values, the output voltage can be set to a specific level. The datasheet provides a formula to calculate the required resistor values for a given output voltage.
  • The SI8630EC-B-IS1 has an operating temperature range of -40°C to +125°C, making it suitable for use in a wide range of industrial and automotive applications.
  • To ensure EMC with the SI8630EC-B-IS1, follow the guidelines provided in the Skyworks Solutions application note AN302A, which includes recommendations for PCB design, component selection, and shielding to minimize electromagnetic radiation and susceptibility.
  • The typical start-up time for the SI8630EC-B-IS1 is around 10 ms, although this can vary depending on the specific application and operating conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SI8630EC-B-IS1 Overview

Use the download button to access the SI8630EC-B-IS1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI863, or try a keyword search, such as Other Interface ICs
