The recommended PCB layout involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing thermal vias under the device. Thermal management involves using a heat sink or thermal pad to keep the junction temperature below 125°C.
To ensure EMC, use a shielded enclosure, keep the device away from antennas and high-frequency circuits, and use filtering and shielding on the input/output lines. Additionally, follow the recommended PCB layout and grounding practices.
The maximum allowable voltage on the input pins is 5.5V, exceeding which may cause permanent damage to the device.
Use ESD protection devices such as TVS diodes or ESD arrays on the input/output lines, and follow proper handling and storage procedures to prevent ESD damage.
The recommended operating frequency range for the SI8642BB-B-IS is 100 kHz to 500 MHz, although the device can operate up to 1 GHz with reduced performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SI8642BB-B-IS Overview

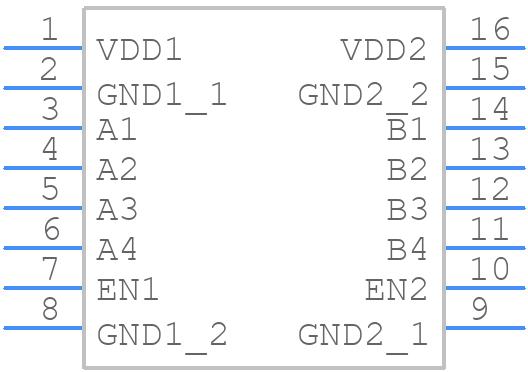

Use the download button to access the SI8642BB-B-IS schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like SI864,
or try a keyword search, such as Other Interface ICs
