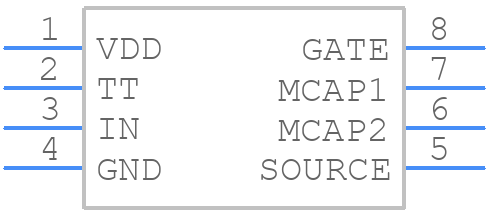

SI8751AB-IS - Skyworks

SI8751AB-IS Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance of the SI8751AB-IS?
  A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from noise sources. Use a common mode choke or ferrite bead to filter the input power.
• How do I ensure reliable operation of the SI8751AB-IS in high-temperature environments?
  Ensure good thermal conduction by using a heat sink or thermal pad. Keep the device away from heat sources and ensure good airflow. Derate the output current and voltage according to the temperature derating curve in the datasheet.
• What are the ESD protection requirements for the SI8751AB-IS?
  The SI8751AB-IS has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is handled in a static-safe environment.
• Can I use the SI8751AB-IS in a redundant or parallel configuration for higher output current?
  Yes, the SI8751AB-IS can be used in a redundant or parallel configuration to increase the output current. However, ensure that the devices are properly synchronized and that the output currents are balanced to prevent oscillations.
• How do I troubleshoot issues with the SI8751AB-IS, such as output voltage droop or instability?
  Use an oscilloscope to monitor the output voltage and current. Check the input voltage, output load, and PCB layout for any issues. Verify that the device is properly configured and that the input and output capacitors are of sufficient value and type.
