- Part Number SI8920BC-ISR
- Manufacturer Skyworks
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - 16-Pin Wide Body SOIC
- Released Date Nov 1, 2022
- Last Modified Date Nov 28, 2023 6:26 AM UTC
- Pinout / Pin List Click Here (Member Only)
SI8920BC-ISR Details
-
Manufacturer Part Number:
SI8920BC-ISR
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
Skyworks Solutions Inc
-
YTEOL:
1
-
Amplifier Type:
ISOLATION AMPLIFIER
-
Bandwidth (3dB)-Nom:
0.95 MHz
-
Common Mode Voltage-Max:
1 V
-
Isolation Voltage-Min:
3075 V
SI8920BC-ISR Frequently Asked Questions (FAQs)
-
The recommended PCB layout for optimal performance of the SI8920BC-ISR involves keeping the input and output traces as short as possible, using a solid ground plane, and placing bypass capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
-
To ensure the SI8920BC-ISR is properly biased for optimal performance, it's recommended to follow the biasing scheme shown in the datasheet, which includes using a 2.5V voltage regulator for VCC and a 1.8V voltage regulator for VDD. Additionally, it's important to ensure that the input voltage is within the recommended range of 2.7V to 5.5V.
-
The maximum operating frequency of the SI8920BC-ISR is 100 MHz, but it can be operated at frequencies up to 200 MHz with reduced performance. It's recommended to consult the datasheet for more information on frequency response and performance characteristics.
-
To troubleshoot issues with the SI8920BC-ISR, it's recommended to follow a systematic approach, starting with checking the power supply and biasing, then verifying the input and output signals, and finally checking for any signs of overheating or physical damage. It's also recommended to consult the datasheet and application notes for more information on troubleshooting and debugging.
-
Yes, the SI8920BC-ISR is compatible with lead-free soldering processes, including RoHS and WEEE compliant processes. However, it's recommended to follow the recommended soldering profile and temperature range to ensure reliable operation and to prevent damage to the device.
Trust Checks
Community Provided
System Verified
Community Approved
SI8920BC-ISR Overview

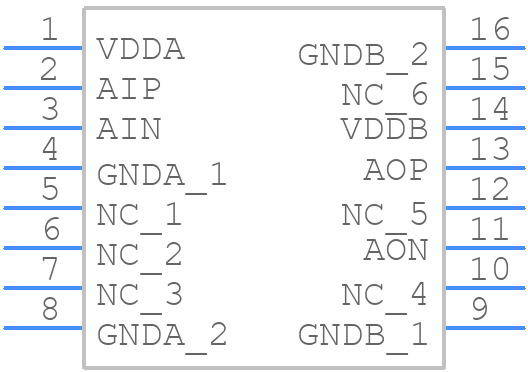

Use the download button to access the SI8920BC-ISR schematic symbol, PCB footprint, and 3D model.
