- Part Number SI8921BD-IS4
- Manufacturer Skyworks
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - WB Stretched SOIC-8
- Released Date May 2, 2023
- Last Modified Date May 2, 2023 8:37 AM UTC
- Pinout / Pin List Click Here (Member Only)
SI8921BD-IS4 Details
-
Manufacturer Part Number:
SI8921BD-IS4
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
Skyworks Solutions Inc
-
YTEOL:
7
-
Amplifier Type:
ISOLATION AMPLIFIER
-
Bandwidth (3dB)-Nom:
0.6 MHz
-
Common Mode Voltage-Max:
1 V
-
Isolation Voltage-Min:
5000 V
SI8921BD-IS4 Frequently Asked Questions (FAQs)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane. Use a via to connect the GND pin to the ground plane.
-
The device requires a 2.5V to 5.5V supply voltage (VCC) and a 0V to 5.5V input voltage (VIN). Ensure the input voltage is within the specified range and the output voltage is properly terminated.
-
The device supports data rates up to 100 Mbps, but the actual data rate may vary depending on the system design and layout.
-
The SI8921BD-IS4 has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and handle the device by the body or pins, not the leads.
-
The SI8921BD-IS4 operates over a temperature range of -40°C to +125°C, but the device's performance may degrade at extreme temperatures.
Trust Checks
Community Provided
System Verified
Community Approved
SI8921BD-IS4 Overview

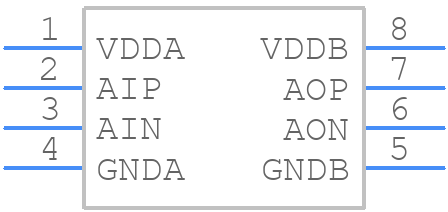

Use the download button to access the SI8921BD-IS4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI892,
or try a keyword search, such as Isolation Amplifiers
