SI8922AB-IS - Skyworks

Description: Isolation Amplifiers Isolated analog amp with differential input and single-ended output. 62.5 mV specified linear input range. Narrow body S08.

Download SI8922AB-IS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

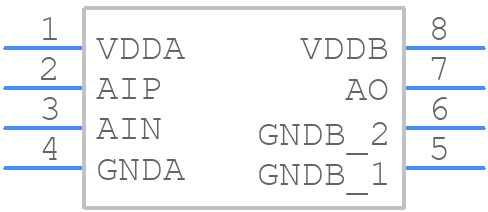

SI8922AB-IS - Skyworks - PCB symbol
click to zoom
PCB Footprints
SI8922AB-IS - Skyworks PCB footprint - Small Outline Packages - Small Outline Packages - SI8922AB-IS
click to zoom
3D Models
SI8922AB-IS - Skyworks - 3D model - Small Outline Packages - SI8922AB-IS
click to zoom

SI8922AB-IS Details

  • Manufacturer Part Number:

    SI8922AB-IS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Skyworks Solutions Inc

  • YTEOL:

    7

  • Amplifier Type:

    ISOLATION AMPLIFIER

  • Bandwidth (3dB)-Nom:

    0.6 MHz

  • Common Mode Voltage-Max:

    1 V

  • Isolation Voltage-Min:

    2500 V

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    6.1 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

SI8922AB-IS Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane. Use a via to connect the signal traces to the ground plane.
  • The device requires a 2.5V to 5.5V supply voltage (VCC) and a 1.65V to 3.6V bias voltage (VBAT). Ensure the bias voltage is stable and within the recommended range to maintain optimal performance.
  • The SI8922AB-IS supports data rates up to 100 Mbps, making it suitable for high-speed applications such as USB, SATA, and PCIe.
  • The SI8922AB-IS has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure the device is properly grounded during handling.
  • The device operates over a temperature range of -40°C to 85°C, making it suitable for a wide range of industrial and commercial applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SI8922AB-IS Overview

Use the download button to access the SI8922AB-IS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI892, or try a keyword search, such as Isolation Amplifiers
