SI8931B-IS - Skyworks

Description: Isolation Amplifiers

Download SI8931B-IS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

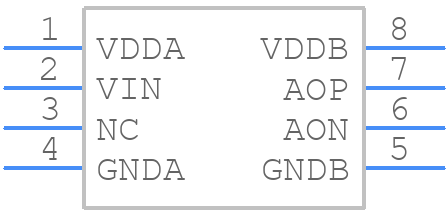

SI8931B-IS - Skyworks - PCB symbol
click to zoom
PCB Footprints
SI8931B-IS - Skyworks PCB footprint - Small Outline Packages - Small Outline Packages - SI8931B-IS
click to zoom
3D Models
SI8931B-IS - Skyworks - 3D model - Small Outline Packages - SI8931B-IS
click to zoom

SI8931B-IS Details

  • Manufacturer Part Number:

    SI8931B-IS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Skyworks Solutions Inc

  • YTEOL:

    8

  • Amplifier Type:

    ISOLATION AMPLIFIER

  • Bandwidth (3dB)-Nom:

    0.6 MHz

  • Common Mode Voltage-Max:

    1.44 V

  • Isolation Voltage-Min:

    2500 V

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    5.7 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm
