SI9200EY-T1-E3 footprint, schematic symbol and 3D model by Vishay

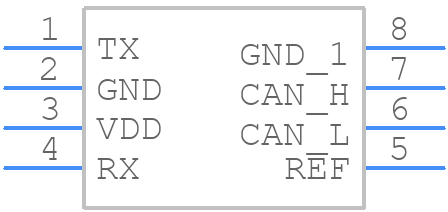

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SI9200EY-T1-E3
Part Number SI9200EY-T1-E3
Manufacturer Vishay
Pin Count 8
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - 8-Pin Narrow SOIC
Released Date Apr 16, 2015
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SI9200EY-T1-E3 Details

Manufacturer Part Number:
SI9200EY-T1-E3
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
LEAD FREE, PLASTIC, MS-012, SO-8
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
Vishay Intertechnologies
YTEOL:
0
Differential Output:
YES
Driver Number of Bits:
1
Input Characteristics:
DIFFERENTIAL
Interface IC Type:
LINE TRANSCEIVER
Interface Standard:
GENERAL PURPOSE
JESD-30 Code:
R-PDSO-G8
JESD-609 Code:
e3
Length:
4.9 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Receive Delay-Max:
120 ns
Receiver Number of Bits:
1
Seated Height-Max:
1.75 mm
Supply Voltage-Max:
5.25 V
Supply Voltage-Min:
4.75 V
Supply Voltage-Nom:
5 V
Surface Mount:
YES
Technology:
BCDMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
MATTE TIN
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Transmit Delay-Max:
50 ns
Width:
3.9 mm

SI9200EY-T1-E3 Frequently Asked Questions (FAQs)

The recommended PCB footprint for the SI9200EY-T1-E3 is a 5-pin SOT23 package with a 1.6mm x 2.9mm body size. The recommended land pattern is available in the Vishay Intertechnologies' application note AN81142.
To ensure reliability in high-temperature applications, it is recommended to follow the derating guidelines provided in the datasheet. Additionally, ensure that the device is operated within the recommended operating temperature range of -40°C to 150°C, and that the maximum junction temperature (Tj) is not exceeded.
The recommended soldering profile for the SI9200EY-T1-E3 is a peak temperature of 260°C for 10 seconds, with a ramp-up rate of 3°C/s and a ramp-down rate of 6°C/s. It is also recommended to follow the IPC/JEDEC J-STD-020 standard for soldering.
To handle the SI9200EY-T1-E3 for ESD protection, it is recommended to follow standard ESD handling procedures, such as using an ESD wrist strap or mat, and storing the devices in ESD-protective packaging. The device has a human body model (HBM) ESD rating of 2 kV.
The recommended storage condition for the SI9200EY-T1-E3 is in a dry, cool place, away from direct sunlight and moisture. The devices should be stored in their original packaging or in a sealed bag with a desiccant packet to maintain a relative humidity of 50% or less.

Trust Checks

Community Provided

System Verified

Community Approved

SI9200EY-T1-E3 Overview

Use the download button to access the SI9200EY-T1-E3 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SI920, or try a keyword search, such as Line Driver or Receivers
