A recommended PCB layout for optimal thermal performance would be to use a 2-layer or 4-layer board with a solid ground plane on the bottom layer, and to place thermal vias under the device to dissipate heat efficiently.
To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a thermally conductive interface material, and keeping the device within its specified operating temperature range.
The recommended soldering conditions for the SI9424BDY-T1-E3 are a peak temperature of 260°C, with a soldering time of 10-30 seconds. It's also recommended to use a solder with a melting point of 220°C or higher.
While the SI9424BDY-T1-E3 is a high-quality device, it's essential to check with Vishay Intertechnologies for specific qualifications and certifications for high-reliability or aerospace applications. Additional testing and screening may be required to meet the specific requirements of these industries.
To prevent electrostatic discharge (ESD) damage, it's recommended to handle the SI9424BDY-T1-E3 in an ESD-protected environment, using ESD-protective packaging, and following proper handling and storage procedures.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SI9424BDY-T1-E3 Overview

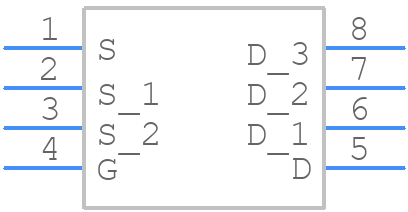

Use the download button to access the SI9424BDY-T1-E3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI942,
or try a keyword search, such as Power Field-Effect Transistors
