SI9926CDY-T1-GE3 footprint, schematic symbol and 3D model by Vishay

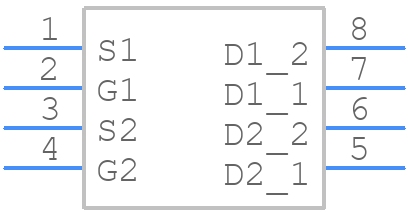

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SI9926CDY-T1-GE3
Part Number SI9926CDY-T1-GE3
Manufacturer Vishay
Pin Count 8
Part Category Transistor
Package Category Small Outline Packages
Footprint Name Small Outline Packages - SOIC (NARROW) 8-LEAD
Released Date Sep 17, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SI9926CDY-T1-GE3 Details
