SIA449DJ-T1-GE3 - Vishay

Description: Vishay SIA449DJ-T1-GE3 P-channel MOSFET Transistor, 10.4 A, -30 V, 6-Pin SC-70

Download SIA449DJ-T1-GE3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

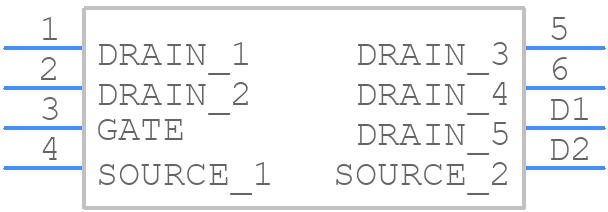

Symbol
SIA449DJ-T1-GE3 - Vishay - PCB symbol
click to zoom
PCB Footprints
SIA449DJ-T1-GE3 - Vishay PCB footprint - Other - Other - SIA449DJ-T1-GE3-2
click to zoom
3D Models
SIA449DJ-T1-GE3 - Vishay - 3D model - Other - SIA449DJ-T1-GE3-2
click to zoom

SIA449DJ-T1-GE3 Details

  • Manufacturer Part Number:

    SIA449DJ-T1-GE3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SC-70, 6 PIN

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    19 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    5.4

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    30 V

  • Drain Current-Max (ID):

    12 A

  • Drain-source On Resistance-Max:

    0.02 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    S-PDSO-N3

  • JESD-609 Code:

    e3

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    P-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    30 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

SIA449DJ-T1-GE3 Frequently Asked Questions (FAQs)

  • The recommended storage condition for SIA449DJ-T1-GE3 is in a dry, cool place with a temperature range of 20°C to 30°C (68°F to 86°F) and humidity below 60%.
  • While SIA449DJ-T1-GE3 has a high junction temperature rating of 150°C, it's essential to consider the thermal resistance and power dissipation when operating in high-temperature environments. Consult with a thermal expert or perform thorough thermal analysis to ensure safe operation.
  • To prevent electrostatic discharge (ESD) damage, handle SIA449DJ-T1-GE3 components in an ESD-protected environment, use ESD-protective packaging, and follow proper handling and storage procedures.
  • The recommended soldering profile for SIA449DJ-T1-GE3 is a peak temperature of 260°C (500°F) for 10 seconds, with a ramp-up rate of 3°C/s (5.4°F/s) and a ramp-down rate of 6°C/s (10.8°F/s).
  • While SIA449DJ-T1-GE3 meets the AEC-Q101 qualification, it's essential to consult with the manufacturer and ensure compliance with specific automotive industry standards and regulations.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SIA449DJ-T1-GE3 Overview

Use the download button to access the SIA449DJ-T1-GE3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SIA44, or try a keyword search, such as Power Field-Effect Transistors
