SIB-120-02-F-S footprint, schematic symbol and 3D model by SAMTEC

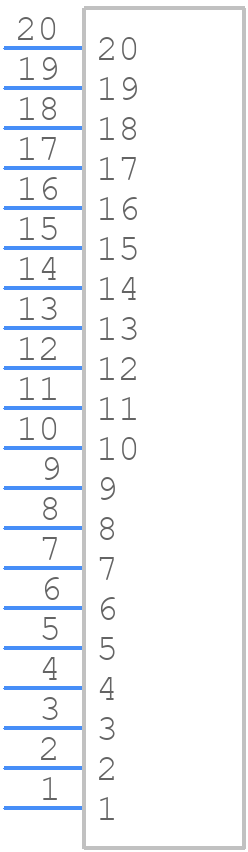

Symbol

click to zoom

PCB Footprints

SIB-120-02-F-S - SAMTEC PCB footprint - Other - Other - SIB-120-02-F-S

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SIB-120-02-F-S
Part Number SIB-120-02-F-S
Manufacturer SAMTEC
Pin Count 20
Part Category Connector
Package Category Other
Footprint Name Other - SIB-120-02-F-S
Released Date Jun 8, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SIB-120-02-F-S Details

Manufacturer Part Number:
SIB-120-02-F-S
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
Mainland China, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
7
Body Breadth:
0.264 inch
Body Depth:
0.15 inch
Body Length:
2 inch
Connector Type:
CARD EDGE CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
Contact Pattern:
RECTANGULAR
Contact Style:
COMPRESSION
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Color:
BLACK
Insulator Material:
LIQUID CRYSTAL POLYMER
MIL Conformance:
NO
Mating Contact Pitch:
0.1 inch
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
1
Number of Rows Loaded:
1
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
Plating Thickness:
FLASH inch
Rated Current (Signal):
2.6 A
Reference Standard:
UL
Terminal Pitch:
2.54 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
20

SIB-120-02-F-S Frequently Asked Questions (FAQs)

The recommended mating sequence for SIB-120-02-F-S is to mate the contacts first, followed by the housing. This ensures proper alignment and prevents damage to the contacts.
Yes, the SIB-120-02-F-S is designed to withstand high-vibration environments. However, it's essential to follow proper mounting and screw torque procedures to ensure the connector remains secure.
The SIB-120-02-F-S has an operating temperature range of -55°C to +125°C. However, it's essential to consider the temperature rating of the specific application and ensure the connector is used within its recommended operating range.
The SIB-120-02-F-S has a specific mating height of 2mm. While it's possible to use it with a different mating height, it's not recommended as it may affect the connector's performance and reliability. Consult with Samtec Inc or a qualified engineer for custom solutions.
The current rating for each contact in the SIB-120-02-F-S is 1.7A. However, it's essential to consider the total current draw and ensure it does not exceed the recommended rating to prevent overheating and damage to the connector.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

SIB-120-02-F-S Overview

Use the download button to access the SIB-120-02-F-S schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like SIB-1, or try a keyword search, such as Headers and Edge Type Connectors
