SIC02120Y-BP - MCC

SIC02120Y-BP Details

• Manufacturer Part Number:

  SIC02120Y-BP

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8541.10.00.80

• Manufacturer:

  Micro Commercial Components

• YTEOL:

  5

• Additional Feature:

  PD-CASE

• Application:

  GENERAL PURPOSE

• Breakdown Voltage-Min:

  1200 V

• Case Connection:

  CATHODE

• Configuration:

  SINGLE

• Diode Element Material:

  SILICON CARBIDE

• Diode Type:

  RECTIFIER DIODE

• Forward Voltage-Max (VF):

  1.6 V

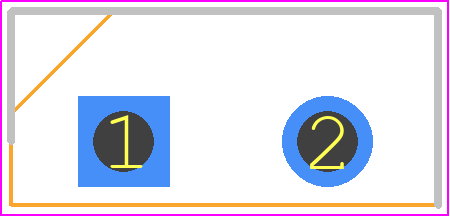

• JEDEC-95 Code:

  TO-220AC

• JESD-30 Code:

  R-PSFM-T2

• JESD-609 Code:

  e3

• Moisture Sensitivity Level:

  1

• Non-rep Pk Forward Current-Max:

  20 A

• Number of Elements:

  1

• Number of Phases:

  1

• Number of Terminals:

  2

• Operating Temperature-Max:

  175 °C

• Operating Temperature-Min:

  -55 °C

• Output Current-Max:

  7.5 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  FLANGE MOUNT

• Packing Method:

  TUBE

• Peak Reflow Temperature (Cel):

  260

• Power Dissipation-Max:

  47.5 W

• Rep Pk Reverse Voltage-Max:

  1200 V

• Reverse Current-Max:

  20 µA

• Reverse Test Voltage:

  1200 V

• Surface Mount:

  NO

• Technology:

  SCHOTTKY

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  THROUGH-HOLE

• Terminal Position:

  SINGLE

• Time@Peak Reflow Temperature-Max (s):

  40
