The recommended PCB footprint for the SIC431DED-T1-GE3 is a DFN4030-10 package with a 3.3mm x 3.3mm body size and 0.5mm pitch. A recommended land pattern can be found in the Vishay Intertechnologies application note 'DFN4030-10 Land Pattern' (document number 81041).
To ensure reliable soldering, follow the recommended soldering profile: peak temperature 260°C, time above 217°C 30s, and time above 183°C 90s. Use a solder with a melting point above 217°C, and ensure the PCB is clean and free of oxidation. Refer to the Vishay Intertechnologies application note 'Soldering Methods and Procedures for Surface Mount Devices' (document number 81042) for more information.
The maximum operating temperature range for the SIC431DED-T1-GE3 is -55°C to 175°C. However, the device is only guaranteed to meet its electrical specifications within the -40°C to 150°C range.
Handle the SIC431DED-T1-GE3 with care to prevent damage. Store the devices in their original packaging or in a dry, ESD-protected environment. Avoid exposing the devices to moisture, direct sunlight, or extreme temperatures. Follow the ESD handling procedures outlined in the Vishay Intertechnologies application note 'ESD Handling and Protection of Semiconductor Devices' (document number 81043).
To ensure reliable operation, implement a thermal management strategy that keeps the device junction temperature below 150°C. Use a thermal pad or heat sink to dissipate heat, and ensure good thermal conductivity between the device and the PCB. Refer to the Vishay Intertechnologies application note 'Thermal Management of Power Semiconductors' (document number 81044) for more information.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SIC431DED-T1-GE3 Overview

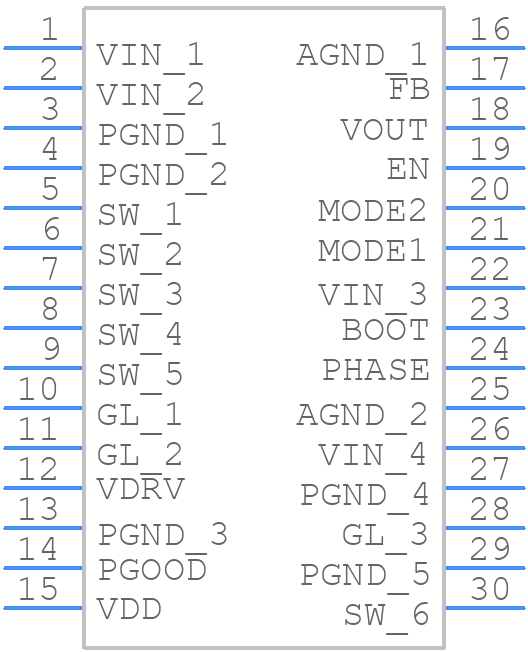

Use the download button to access the SIC431DED-T1-GE3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SIC43,
or try a keyword search, such as Switching Regulator or Controllers
