SIC438DED-T1-GE3 - Vishay

Description: Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 8A 24-PowerWFQFN

Download SIC438DED-T1-GE3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

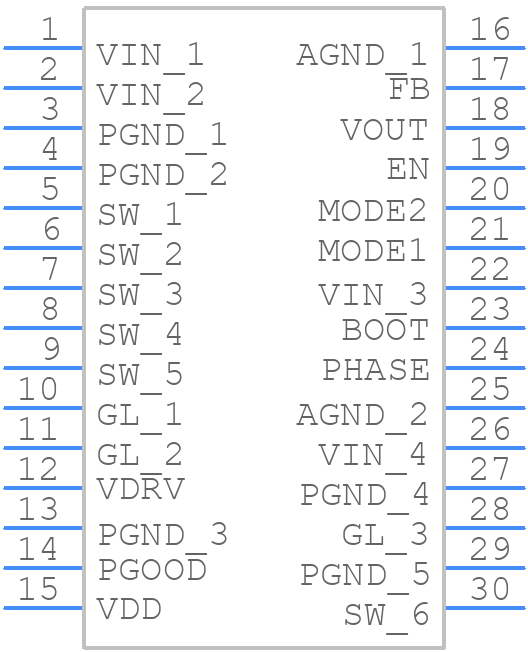

SIC438DED-T1-GE3 - Vishay - PCB symbol
click to zoom
PCB Footprints
SIC438DED-T1-GE3 - Vishay PCB footprint - Other - Other - SIC438DED-T1-GE3-1
click to zoom
3D Models
SIC438DED-T1-GE3 - Vishay - 3D model - Other - SIC438DED-T1-GE3-1
click to zoom

SIC438DED-T1-GE3 Details

  • Manufacturer Part Number:

    SIC438DED-T1-GE3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    7.7

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    28 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    S-XQCC-N24

  • Length:

    4 mm

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    8 A

  • Output Voltage-Max:

    25.2 V

  • Output Voltage-Min:

    0.6 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,18

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.12 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Switching Frequency-Max:

    1000 kHz

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.45 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

SIC438DED-T1-GE3 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the SIC438DED-T1-GE3 is a 5-pin SOT-23 package with a 1.5mm x 1.5mm body size. The recommended land pattern is available in the Vishay Intertechnologies' application note.
  • To ensure reliability in high-temperature applications, it is recommended to follow the derating guidelines provided in the datasheet. Additionally, ensure that the device is operated within the recommended operating temperature range of -55°C to 175°C, and that the maximum junction temperature (Tj) is not exceeded.
  • The maximum allowed voltage on the input pins of the SIC438DED-T1-GE3 is 5V. Exceeding this voltage may damage the device.
  • The SIC438DED-T1-GE3 has built-in ESD protection, but it is still recommended to follow proper ESD handling procedures during assembly and testing to prevent damage to the device.
  • The recommended storage condition for the SIC438DED-T1-GE3 is in a dry, cool place, away from direct sunlight and moisture. The device should be stored in its original packaging or in a sealed bag to prevent moisture absorption.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SIC438DED-T1-GE3 Overview

Use the download button to access the SIC438DED-T1-GE3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SIC43, or try a keyword search, such as Switching Regulator or Controllers
