The recommended PCB footprint for the SIC471ED-T1-GE3 is a standard TO-252 (D-PAK) footprint with a minimum pad size of 2.5mm x 2.5mm and a thermal pad size of 3.5mm x 3.5mm.
To ensure reliable soldering, use a soldering iron with a temperature range of 250°C to 260°C, and apply a small amount of solder paste to the PCB pads. Avoid applying excessive force or pressure during soldering, and ensure the component is properly aligned with the PCB pads.
The maximum allowed power dissipation for the SIC471ED-T1-GE3 is 150W at a case temperature of 25°C. However, it's recommended to derate the power dissipation to 100W or less to ensure reliable operation and minimize thermal stress.
While the SIC471ED-T1-GE3 is a high-performance device, it may not meet the specific requirements for high-reliability or aerospace applications. It's recommended to consult with Vishay Intertechnologies or a qualified reliability engineer to determine the suitability of the device for such applications.
To prevent ESD damage, handle the SIC471ED-T1-GE3 with ESD-protective equipment, such as wrist straps or mats, and ensure the PCB and components are properly grounded. Avoid touching the device pins or PCB pads with bare hands, and use ESD-protective packaging during storage and transportation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SIC471ED-T1-GE3 Overview

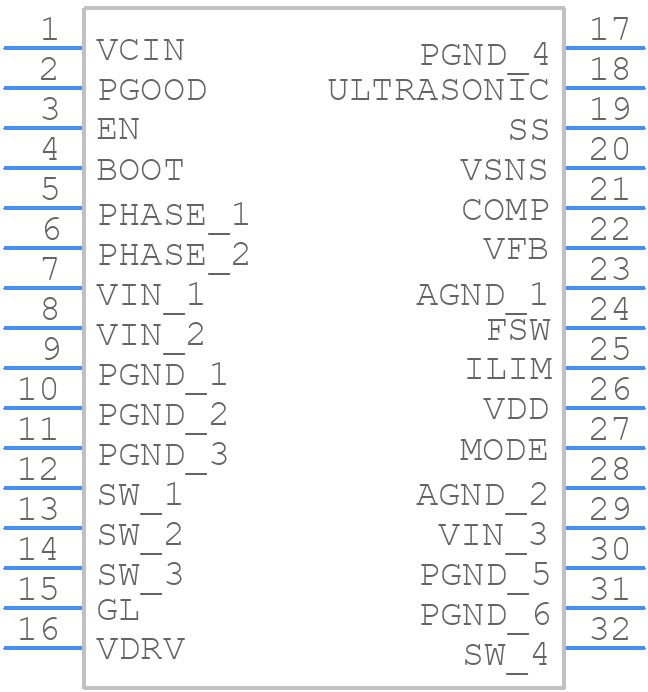

Use the download button to access the SIC471ED-T1-GE3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SIC47,
or try a keyword search, such as Switching Regulator or Controllers
