SID1182K - Power Integrations

Description: Gate Drivers Sgl Ch 8.0A Fluxlink 250kHz Delay 260ns

Download SID1182K Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

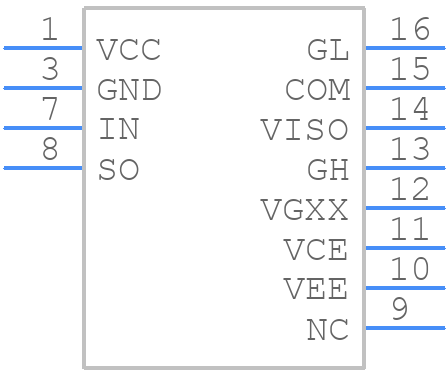

SID1182K - Power Integrations PCB footprint - Other - Other - eSOP-R16B_2022-2
click to zoom

SID1182K Details

  • Manufacturer Part Number:

    SID1182K

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Power Integrations

  • YTEOL:

    8.1

  • High Side Driver:

    NO

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    BUFFER OR INVERTER BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G15

  • Length:

    10.16 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    15

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Peak Current Limit-Nom:

    8 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SOP15/16,.46

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.67 mm

  • Supply Current-Max:

    23 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Supply Voltage1-Max:

    28 V

  • Supply Voltage1-Min:

    22 V

  • Supply Voltage1-Nom:

    25 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Turn-off Time:

    359 µs

  • Turn-on Time:

    364 µs

  • Width:

    8.89 mm

SID1182K Frequently Asked Questions (FAQs)

  • A 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer is recommended. Ensure that the thermal pad is connected to a large copper area to dissipate heat efficiently.
  • Ensure that the input voltage rises and falls monotonically, and that the enable pin is driven high or low before the input voltage reaches the UVLO threshold. Also, add a soft-start circuit to limit the inrush current during start-up.
  • The maximum allowed voltage on the BYPASS pin is 6.5V. Exceeding this voltage may damage the internal voltage regulator.
  • Use a high-value resistor (e.g., 1MΩ) on the enable pin to minimize standby current. Also, ensure that the input voltage is below the UVLO threshold during standby mode.
  • A low-ESR ceramic capacitor (e.g., X5R or X7R) with a value of 10μF to 22μF is recommended. This helps to filter out input voltage noise and ensures stable operation.
