SII1127ACTU - Lattice Semiconductor

Description: Video ICs 2 port HDMI1.3 receiver with HDMI Mobile -No HDCP

Download SII1127ACTU Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SII1127ACTU - Lattice Semiconductor - PCB symbol
click to zoom

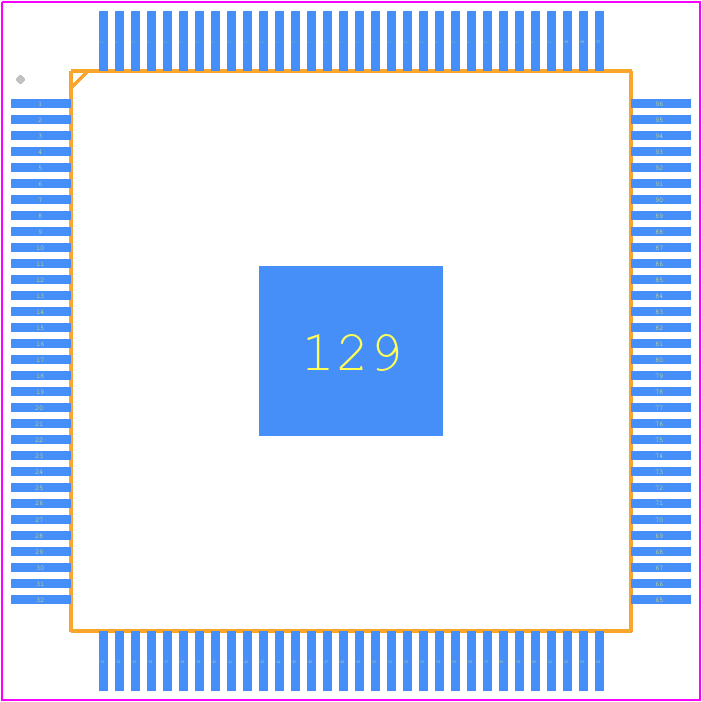

PCB Footprints
SII1127ACTU - Lattice Semiconductor PCB footprint - Quad Flat Packages - Quad Flat Packages - 128-pin TQFP package.
click to zoom
3D Models
SII1127ACTU - Lattice Semiconductor - 3D model - Quad Flat Packages - 128-pin TQFP package.
click to zoom

SII1127ACTU Details

  • Manufacturer Part Number:

    SII1127ACTU

  • Part Life Cycle Code:

    Active

  • Package Description:

    TQFP-128

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Lattice Semiconductor Corporation

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQFP-G128

  • Length:

    14 mm

  • Number of Functions:

    1

  • Number of Terminals:

    128

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    1.26 V

  • Supply Voltage-Min (Vsup):

    1.14 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    14 mm

SII1127ACTU Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCCIO first, followed by VCCA, and then VCC. This ensures that the internal voltage regulators are powered up correctly.
  • The SII1127ACTU can be configured using the Lattice Diamond software or the ispLEVER Classic software. The software provides a graphical user interface to configure the device's settings, such as the PLL, clock frequency, and I/O settings.
  • The maximum frequency of the SII1127ACTU is 350 MHz. However, the actual frequency may vary depending on the specific application and the device's operating conditions.
  • To implement a CDC in the SII1127ACTU, you can use the device's built-in clock domain crossing circuits or implement a synchronous CDC using the device's clock management unit (CMU). The Lattice Diamond software provides tools to help you implement CDCs.
  • The power consumption of the SII1127ACTU varies depending on the device's operating frequency, voltage, and application. The typical power consumption is around 1.5W, but it can be as low as 0.5W in low-power modes.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SII1127ACTU Overview

Use the download button to access the SII1127ACTU schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SII11, or try a keyword search, such as Other Consumer ICs
