SII1136CTU - Lattice Semiconductor

Description: Lattice 300MHz HDMI 1.4 Transmitter without HDCP

Download SII1136CTU Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SII1136CTU - Lattice Semiconductor - PCB symbol
click to zoom
PCB Footprints

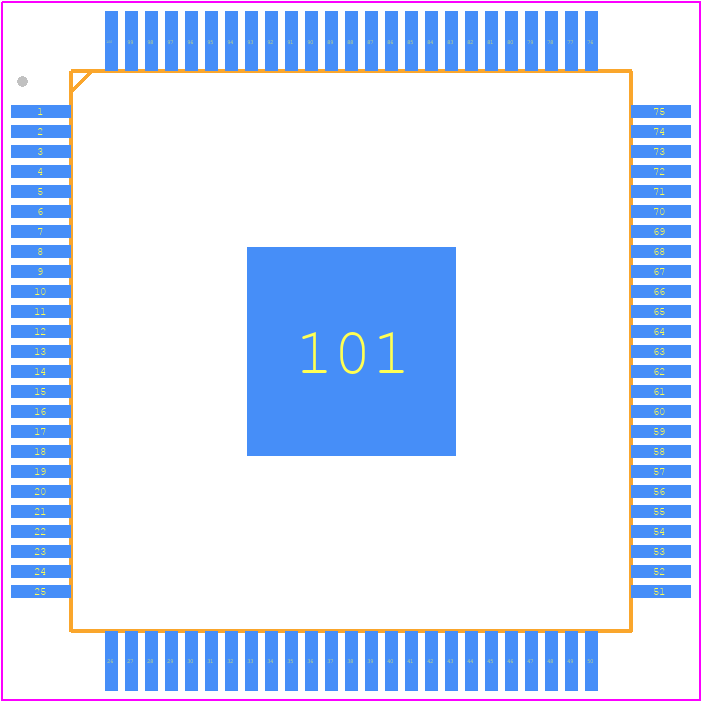

SII1136CTU - Lattice Semiconductor PCB footprint - Quad Flat Packages - Quad Flat Packages - 100-PIN
click to zoom
3D Models
SII1136CTU - Lattice Semiconductor - 3D model - Quad Flat Packages - 100-PIN
click to zoom

SII1136CTU Details

  • Manufacturer Part Number:

    SII1136CTU

  • Part Life Cycle Code:

    Active

  • Package Description:

    TQFP-100

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Lattice Semiconductor Corporation

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQFP-G100

  • Length:

    14 mm

  • Number of Functions:

    1

  • Number of Terminals:

    100

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    1.26 V

  • Supply Voltage-Min (Vsup):

    1.14 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    14 mm

SII1136CTU Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCCIO first, followed by VCC, and then VREF. This ensures that the internal voltage regulators are powered up correctly.
  • The SII1136CTU can be configured for a specific frequency using the Serial Configuration Interface (SCI). The SCI allows you to program the device's internal registers to set the desired frequency, phase, and amplitude.
  • The SII1136CTU supports clock frequencies up to 1.5 GHz. However, the maximum frequency may vary depending on the specific application and operating conditions.
  • To ensure signal integrity, it is recommended to use a low-impedance PCB design, minimize trace lengths, and use signal termination resistors. Additionally, the SII1136CTU has built-in features such as output impedance control and slew rate control to help maintain signal integrity.
  • The SII1136CTU is not specifically designed for radiation-hardened applications. However, Lattice Semiconductor Corporation offers other products that are designed for radiation-hardened applications. It is recommended to consult with Lattice Semiconductor Corporation for specific requirements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SII1136CTU Overview

Use the download button to access the SII1136CTU schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SII11, or try a keyword search, such as Other Consumer ICs
