SII9127ACTU - Lattice Semiconductor

Description: Video ICs Lattice

Download SII9127ACTU Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

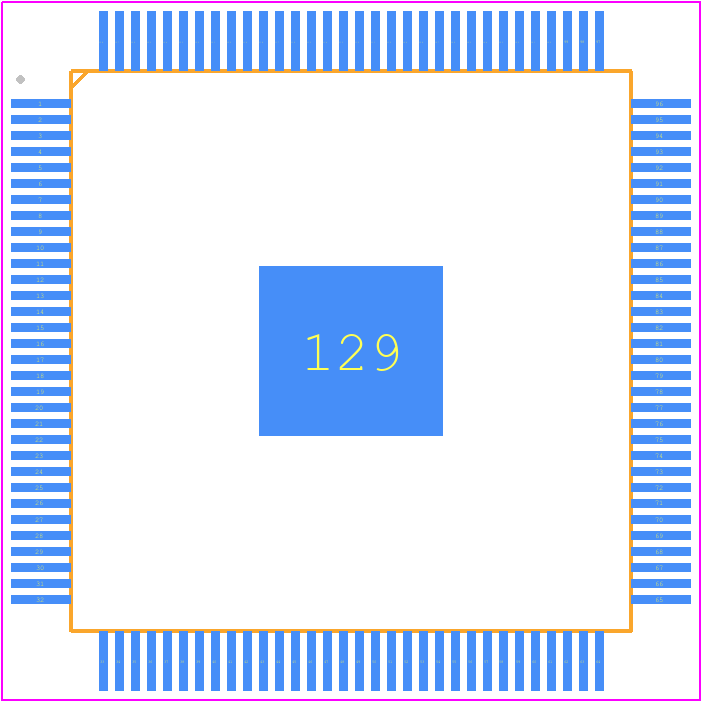

SII9127ACTU - Lattice Semiconductor PCB footprint - Quad Flat Packages - Quad Flat Packages - 128-pin TQFP package.
click to zoom
3D Models
SII9127ACTU - Lattice Semiconductor  - 3D model - Quad Flat Packages - 128-pin TQFP package.
click to zoom

SII9127ACTU Details

  • Manufacturer Part Number:

    SII9127ACTU

  • Part Life Cycle Code:

    Active

  • Package Description:

    TQFP-128

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Lattice Semiconductor Corporation

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQFP-G128

  • Length:

    14 mm

  • Number of Functions:

    1

  • Number of Terminals:

    128

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    1.26 V

  • Supply Voltage-Min (Vsup):

    1.14 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    14 mm

SII9127ACTU Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCCIO first, followed by VCCINT, and then VREF. This ensures proper device operation and prevents latch-up.
  • A reliable reset circuit can be implemented using a resistor-capacitor (RC) network connected to the RESET pin. The RC time constant should be chosen to ensure that the reset signal is asserted for at least 10 ms to ensure proper device reset.
  • The maximum frequency of operation for the SII9127ACTU is 200 MHz. However, the actual operating frequency may be limited by the specific application and PCB design.
  • To optimize the SII9127ACTU for low power consumption, use the lowest possible voltage supply, reduce the clock frequency, and minimize the number of active I/Os. Additionally, use the device's built-in power management features, such as the Power Down mode.
  • The recommended termination scheme for the SII9127ACTU's I/Os is to use a series resistor (Rs) of 22-33 ohms and a parallel capacitor (Cp) of 10-22 pF. This termination scheme helps to reduce signal reflections and improve signal integrity.
