The recommended PCB layout and thermal management for the SII9437CNUC involve using a 4-layer PCB with a solid ground plane, placing decoupling capacitors close to the device, and using thermal vias to dissipate heat. A thermal pad on the bottom of the package should be connected to a solid ground plane to improve heat dissipation.
Power sequencing for the SII9437CNUC involves applying power to the VCC and VCCA pins in a specific order. Apply power to VCCA first, followed by VCC. Ensure that the power supply voltage is stable and within the recommended operating range before applying it to the device.
For signal integrity and routing, use controlled impedance traces, minimize trace lengths, and avoid vias and stubs. Use a solid ground plane and decoupling capacitors to reduce noise and ensure signal quality. Route critical signals, such as clock and data lines, away from noisy signals and use shielding if necessary.
Firmware updates and configuration for the SII9437CNUC can be handled using the Lattice Diamond software or other programming tools. Ensure that the device is properly configured and programmed before use. Follow the recommended programming and configuration procedures to avoid errors and ensure proper device operation.
The SII9437CNUC has an operating temperature range of -40°C to 100°C. Ensure that the device is operated within this range to prevent damage or malfunction. Implement proper thermal management, such as heat sinks or thermal interfaces, to maintain a safe operating temperature.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SII9437CNUC Overview

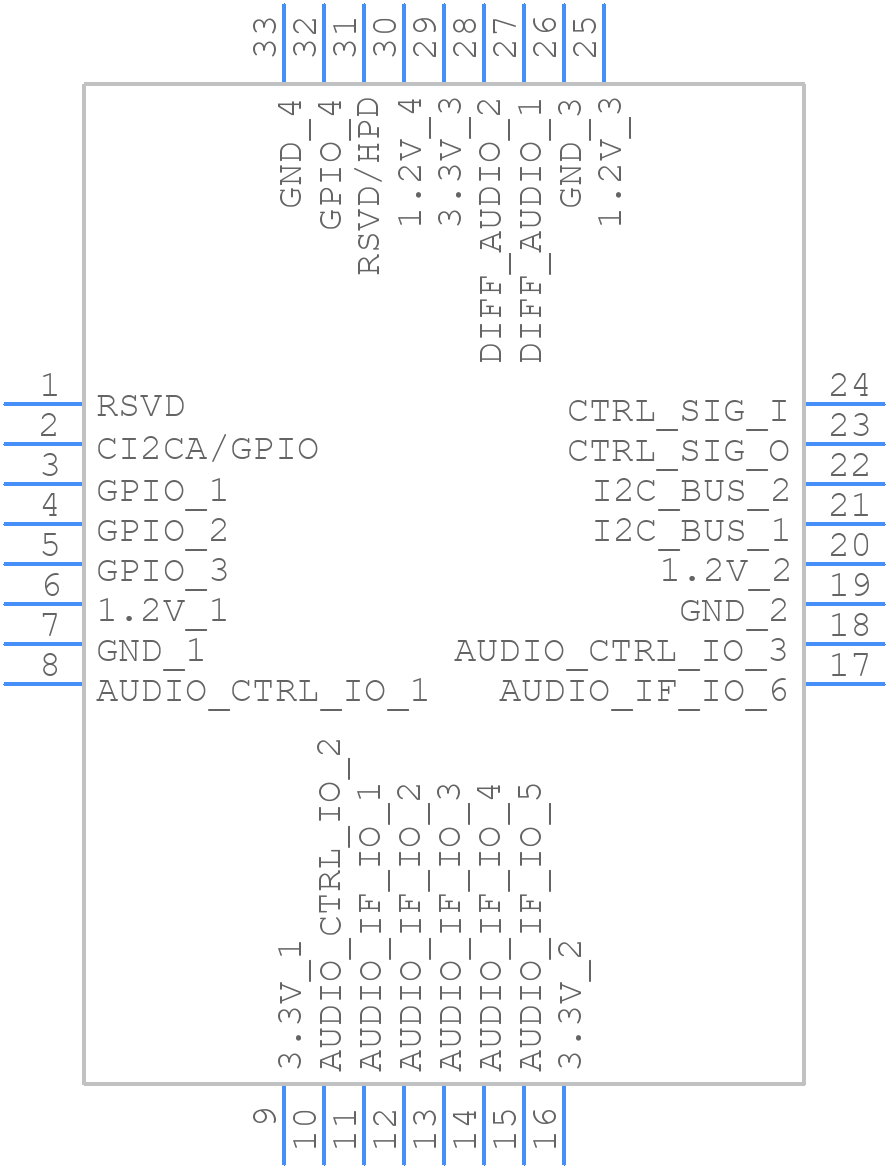

Use the download button to access the SII9437CNUC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SII94,
or try a keyword search, such as Other Consumer ICs
