The recommended PCB footprint for SIJ188DP-T1-GE3 is a rectangle with dimensions 1.6 mm x 0.8 mm, with a pad size of 0.5 mm x 0.5 mm. It's essential to follow the recommended footprint to ensure proper soldering and thermal performance.
To handle thermal management, ensure good thermal conductivity between the component and the PCB by using a thermal pad or a thermal interface material. Keep the surrounding components at a safe distance to prevent thermal coupling. Also, consider using a heat sink or a thermal management system if the application requires high power dissipation.
The maximum operating temperature range for SIJ188DP-T1-GE3 is -55°C to 175°C. However, it's essential to note that the component's performance and reliability may degrade if operated at extreme temperatures for an extended period.
Yes, SIJ188DP-T1-GE3 is designed to withstand vibrations up to 10 G peak acceleration. However, it's crucial to ensure proper PCB design, component placement, and soldering to prevent mechanical stress and damage.
To ensure reliability in a humid environment, follow proper storage and handling procedures, and consider using a moisture-sensitive device (MSD) bag or a dry pack to store the components. Also, ensure that the PCB is designed with moisture-resistant materials and coatings.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SIJ188DP-T1-GE3 Overview

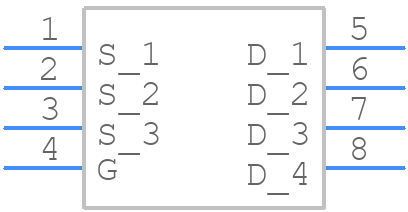

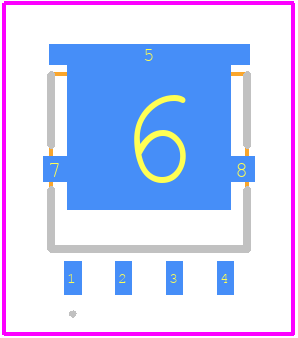

Use the download button to access the SIJ188DP-T1-GE3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SIJ18,
or try a keyword search, such as Power Field-Effect Transistors
