The recommended land pattern for SIJ438DP-T1-GE3 can be found in the Vishay Intertechnologies' application note AN42171, which provides detailed guidelines for PCB layout and land pattern design.
Thermal management is critical for the SIJ438DP-T1-GE3. Ensure good thermal conductivity by using a thermal pad or thermal interface material, and design the PCB to allow for adequate airflow. The datasheet provides thermal resistance values to help with thermal design.
The maximum operating temperature range for SIJ438DP-T1-GE3 is -55°C to 175°C, as specified in the datasheet. However, it's essential to consider the derating curves and thermal management to ensure reliable operation within this range.
While the SIJ438DP-T1-GE3 is a high-performance component, it may not meet the specific requirements for high-reliability or aerospace applications. Engineers should consult with Vishay Intertechnologies or a qualified representative to determine the component's suitability for such applications.
Follow the recommended soldering profile and guidelines provided in the datasheet or Vishay Intertechnologies' application notes. Ensure the soldering temperature and time are within the specified limits to prevent damage to the component.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SIJ438DP-T1-GE3 Overview

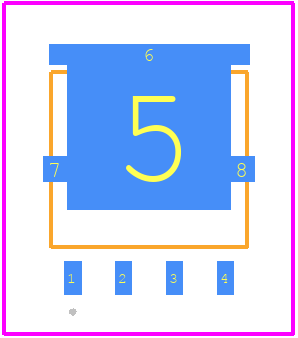

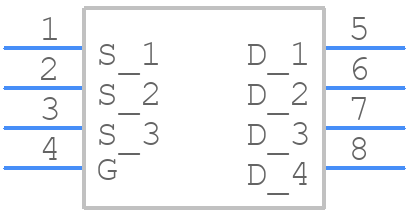

Use the download button to access the SIJ438DP-T1-GE3 schematic symbol, PCB footprint, and 3D model.
