- Part Number SIM-73L+
- Manufacturer Mini-Circuits
- Pin Count 10
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - SIM-73L+-6
- Released Date Apr 7, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
SIM-73L+ Details
-
Manufacturer Part Number:
SIM-73L+
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
ROHS COMPLIANT, CERAMIC, CASE HV1195, 8 PIN
-
ECCN Code:
EAR99
-
Manufacturer:
Mini-Circuits
-
YTEOL:
7
-
Construction:
COMPONENT
-
Conversion Loss-Max:
8.5 dB
-
Input Power-Max (CW):
17 dBm
SIM-73L+ Frequently Asked Questions (FAQs)
-
Mini-Circuits provides a recommended PCB layout and footprint in their application note AN-60-012, which can be found on their website. It's essential to follow this layout to ensure optimal performance and minimize parasitic effects.
-
To achieve the specified noise figure performance, ensure that the device is biased correctly, and the input and output impedances are matched to 50 ohms. Additionally, use a high-quality, low-noise power supply and minimize the noise floor of the surrounding circuitry.
-
While the datasheet specifies an operating temperature range of -40°C to +85°C, it's essential to derate the device's power dissipation at higher temperatures to ensure reliability and prevent thermal runaway. Consult the datasheet and application notes for more information.
-
While the SIM-73L+ is designed for 50 ohm systems, it can be used in non-50 ohm systems with proper impedance matching. However, this may require additional circuitry and can affect the device's performance. Consult with a qualified RF engineer or Mini-Circuits' application support team for guidance.
-
The SIM-73L+ is a sensitive device and requires proper ESD protection during handling and assembly. Use a wrist strap or mat, and follow standard ESD precautions to prevent damage. Additionally, consider adding ESD protection circuitry to the PCB design.
Trust Checks
Expert Contribution
System Verified
Community Approved
SIM-73L+ Overview

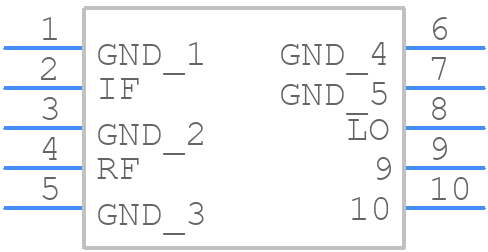

Use the download button to access the SIM-73L+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SIM-7,
or try a keyword search, such as RF/Microwave Mixers
