SIM6822M footprint, schematic symbol and 3D model by Allegro Microsystems

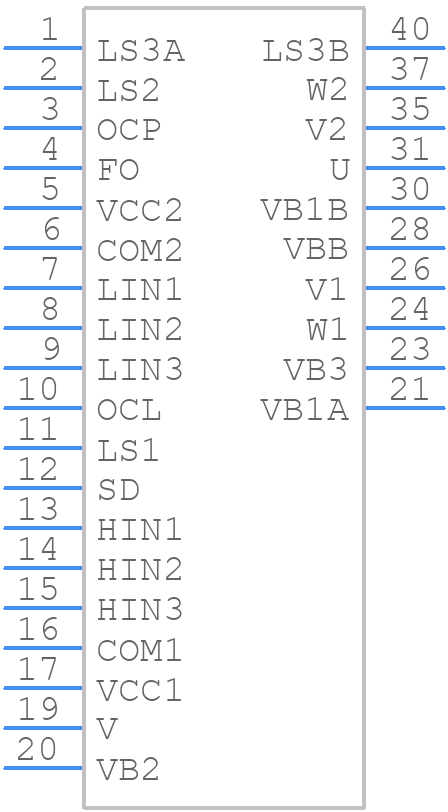

Symbol

click to zoom

PCB Footprints

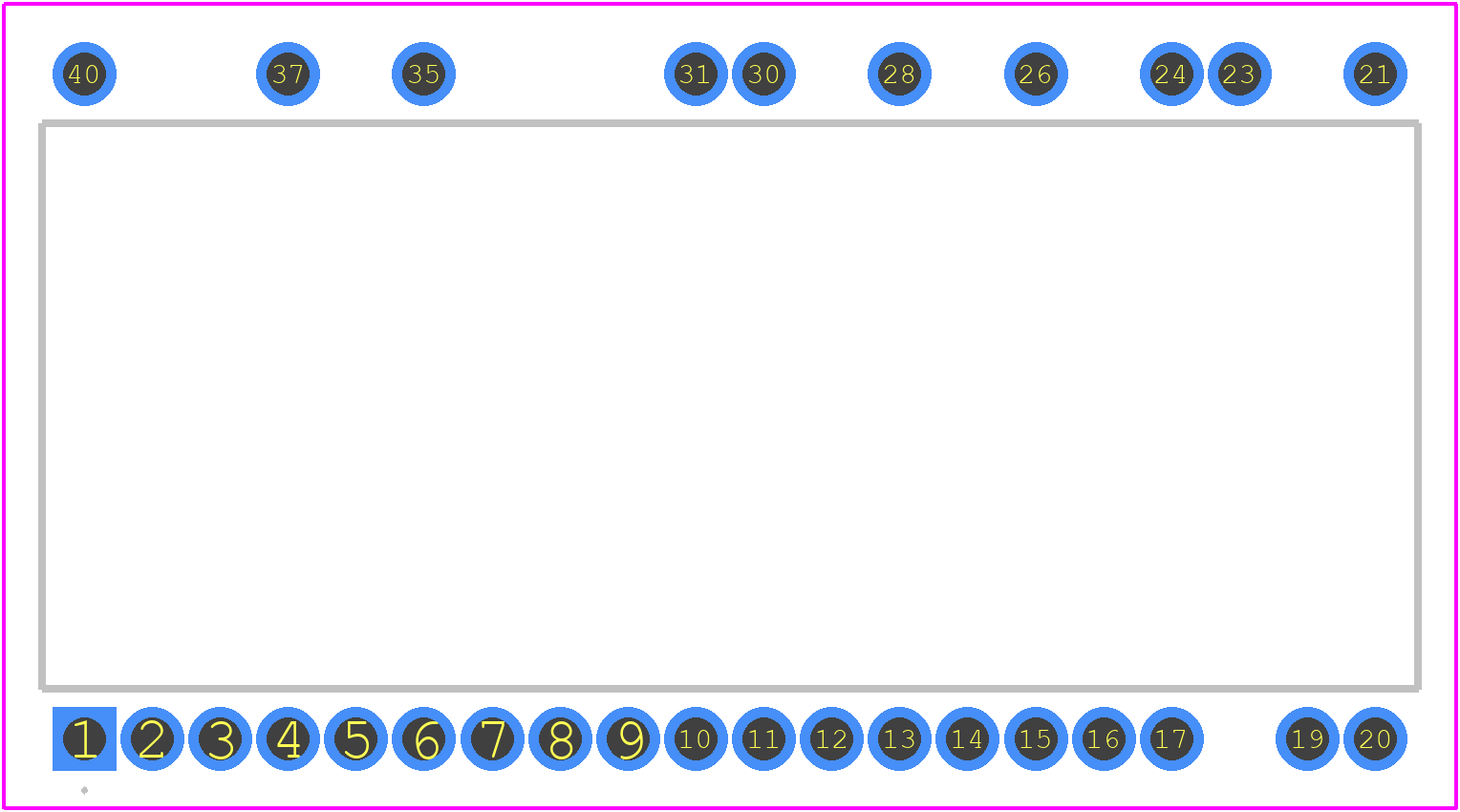

SIM6822M - Allegro Microsystems PCB footprint - Other - Other - SIM6822M-4

click to zoom

3D Models

SIM6822M - Allegro Microsystems - 3D model - Other - SIM6822M-4

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SIM6822M
Part Number SIM6822M
Manufacturer Allegro Microsystems
Pin Count 29
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - SIM6822M-4
Released Date Sep 18, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SIM6822M Details

Manufacturer Part Number:
SIM6822M
Rohs Code:
Yes
Part Life Cycle Code:
Not Recommended
Part Package Code:
DIP
Package Description:
ROHS COMPLIANT, DIP-40/30
Pin Count:
40/30
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
Allegro MicroSystems LLC
YTEOL:
3
Analog IC - Other Type:
3-PHASE BRUSHLESS DC MOTOR CONTROLLER
JESD-30 Code:
R-PDIP-T30
Length:
36 mm
Number of Functions:
1
Number of Terminals:
30
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-25 °C
Output Current-Max:
7.5 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
SDIP
Package Shape:
RECTANGULAR
Package Style:
IN-LINE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
4.2 mm
Supply Voltage-Max (Vsup):
16.5 V
Supply Voltage-Min (Vsup):
13.5 V
Supply Voltage-Nom (Vsup):
15 V
Surface Mount:
NO
Temperature Grade:
OTHER
Terminal Form:
THROUGH-HOLE
Terminal Pitch:
1.778 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
40
Width:
15.24 mm

SIM6822M Frequently Asked Questions (FAQs)

A good PCB layout for the SIM6822M involves keeping the high-current paths short and wide, using a solid ground plane, and placing the decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
When choosing an inductor for the SIM6822M, consider the inductor's saturation current, DC resistance, and core material. A good starting point is to select an inductor with a saturation current rating of at least 1.5 times the maximum output current, and a DC resistance of less than 100 mΩ.
A low-ESR ceramic capacitor with a value of 10-22 μF is recommended for the input capacitor. The capacitor should be placed close to the VIN pin and have a voltage rating of at least 1.5 times the maximum input voltage.
The output voltage of the SIM6822M can be adjusted by changing the resistor divider ratio of the feedback resistors (RFB1 and RFB2). The output voltage can be calculated using the formula: VOUT = 0.8V x (1 + RFB2/RFB1).
The thermal derating curve for the SIM6822M is typically provided in the datasheet or can be obtained from Allegro MicroSystems LLC. The curve shows the maximum allowable power dissipation vs. ambient temperature, and is used to ensure the device operates within its safe operating area.
