SIP2100DY-T1-GE3 footprint, schematic symbol and 3D model by Vishay

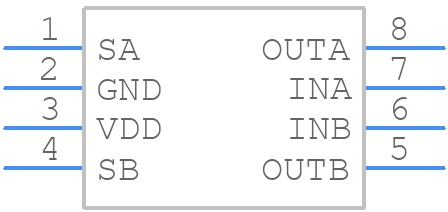

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SIP2100DY-T1-GE3
Part Number SIP2100DY-T1-GE3
Manufacturer Vishay
Pin Count 8
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - 8-Pin Narrow SOIC
Released Date Jul 15, 2016
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SIP2100DY-T1-GE3 Details

Manufacturer Part Number:
SIP2100DY-T1-GE3
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
SOIC-8
Country Of Origin:
Taiwan
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Factory Lead Time:
14 Weeks
Date Of Intro:
2016-06-12
Manufacturer:
Vishay Intertechnologies
YTEOL:
5
Analog IC - Other Type:
STEPPER MOTOR CONTROLLER
JESD-30 Code:
R-PDSO-G8
JESD-609 Code:
e3
Length:
4.9 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
1 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP8,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.75 mm
Supply Current-Max (Isup):
0.3 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
3.8 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Matte Tin (Sn) - annealed
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3.9 mm

SIP2100DY-T1-GE3 Frequently Asked Questions (FAQs)

The recommended PCB footprint for the SIP2100DY-T1-GE3 is a rectangular pad with a size of 1.5 mm x 0.8 mm, with a 0.5 mm spacing between pads. It's essential to follow the recommended footprint to ensure proper thermal performance and to prevent thermal runaway.
To ensure proper soldering, use a soldering iron with a temperature of 250°C to 270°C. Apply a small amount of solder paste to the PCB pads, and then place the SIP2100DY-T1-GE3 on the pads. Use a gentle pushing motion to ensure the device is properly seated. Finally, use a soldering iron to reflow the solder paste.
The maximum operating temperature range for the SIP2100DY-T1-GE3 is -55°C to 150°C. However, it's essential to note that the device's performance and reliability may degrade if operated at extreme temperatures for extended periods.
The SIP2100DY-T1-GE3 is not designed for use in high-humidity environments. It's recommended to use the device in environments with a relative humidity of 60% or less. If you must use the device in a high-humidity environment, ensure proper sealing and conformal coating to prevent moisture ingress.
The recommended storage condition for the SIP2100DY-T1-GE3 is in a dry, cool place with a temperature range of 20°C to 30°C and a relative humidity of 60% or less. Avoid storing the device in direct sunlight or near heat sources.

Trust Checks

Expert Contribution

System Verified

Community Approved

SIP2100DY-T1-GE3 Overview

Use the download button to access the SIP2100DY-T1-GE3 schematic symbol, PCB footprint, and 3D model.
