The recommended PCB footprint for the SIP32101DB-T1-GE1 is a 4-pad land pattern with a pitch of 1.5 mm and a pad size of 2.5 mm x 2.5 mm. It's essential to follow the recommended footprint to ensure proper thermal performance and to prevent overheating.
To ensure proper soldering, use a soldering iron with a temperature of 250°C to 260°C. Apply a small amount of solder paste to the PCB pads, and then place the SIP32101DB-T1-GE1 on the pads. Use a reflow oven or a hot air gun to melt the solder paste. Make sure to follow the recommended soldering profile to prevent damage to the device.
The maximum operating temperature range for the SIP32101DB-T1-GE1 is -40°C to 150°C. However, it's recommended to operate the device within a temperature range of -20°C to 125°C for optimal performance and reliability.
To prevent damage, store the SIP32101DB-T1-GE1 in its original packaging or in a dry, ESD-protected environment. Avoid exposing the device to moisture, extreme temperatures, or physical stress. During shipping, use anti-static packaging materials and ensure the device is properly secured to prevent movement and damage.
To ensure proper thermal management, use a heat sink with a thermal interface material (TIM) and a thermal conductivity of at least 1 W/m-K. Apply a thin layer of TIM to the heat sink, and then attach the heat sink to the SIP32101DB-T1-GE1 using a screw or clip. Ensure good airflow around the device to prevent overheating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SIP32101DB-T1-GE1 Overview

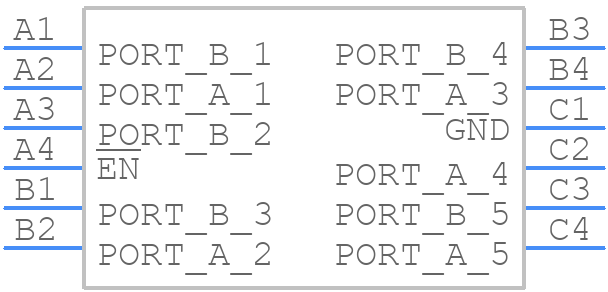

Use the download button to access the SIP32101DB-T1-GE1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SIP32,
or try a keyword search, such as Peripheral Drivers
