SIP32430DN-T1-GE4 - Vishay

Description: Power Switch ICs - Power Distribution 1A Slew Rate Cntrled w/rev blkng switch

Download SIP32430DN-T1-GE4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

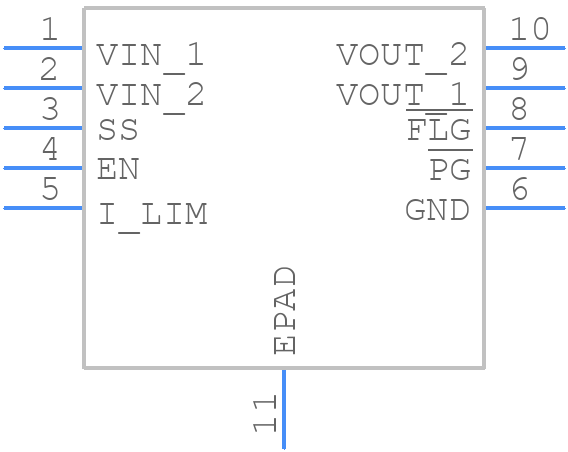

SIP32430DN-T1-GE4 - Vishay - PCB symbol
click to zoom
PCB Footprints
SIP32430DN-T1-GE4 - Vishay PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN-10 LEAD (3 X 3)-1
click to zoom
3D Models
SIP32430DN-T1-GE4 - Vishay - 3D model - Small Outline No-lead - DFN-10 LEAD (3 X 3)-1
click to zoom

SIP32430DN-T1-GE4 Details

  • Manufacturer Part Number:

    SIP32430DN-T1-GE4

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6.75

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    Load switch

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    6 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.8V

  • Width:

    3 mm

SIP32430DN-T1-GE4 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the SIP32430DN-T1-GE4 is a 4-pin, 1.5mm x 1.5mm DFN package with a 0.5mm pitch. A thermal pad is recommended for heat dissipation.
  • To ensure proper thermal management, a thermal pad on the PCB is recommended. Additionally, a heat sink or thermal interface material can be used to improve heat dissipation. The device should be operated within the recommended junction temperature range of -40°C to 150°C.
  • The maximum allowed voltage on the VIN pin is 5.5V. Exceeding this voltage may damage the device.
  • Yes, the SIP32430DN-T1-GE4 is rated for operation up to 150°C junction temperature. However, the device's performance and reliability may degrade at high temperatures. It is recommended to consult the datasheet and application notes for specific guidance on high-temperature operation.
  • To troubleshoot issues with the SIP32430DN-T1-GE4, start by verifying the power supply voltage, input voltage, and output voltage. Check for proper PCB layout and thermal management. Consult the datasheet and application notes for specific troubleshooting guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SIP32430DN-T1-GE4 Overview

Use the download button to access the SIP32430DN-T1-GE4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SIP32, or try a keyword search, such as Power Management Circuits
