Vishay provides a recommended PCB layout in their application note AN826, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure optimal performance.
The input capacitor selection depends on the input voltage, current, and frequency. A general guideline is to choose a capacitor with a voltage rating at least 1.5 times the maximum input voltage, and a capacitance value between 1uF to 10uF. Additionally, consider the capacitor's ESR, ripple current rating, and temperature coefficient.
The maximum allowed voltage drop across the SIP32433ADN-T1E4 is not explicitly stated in the datasheet. However, as a general guideline, it's recommended to keep the voltage drop below 1V to ensure reliable operation and minimize power losses.
The SIP32433ADN-T1E4 has a maximum operating junction temperature of 150°C. While it can operate in high-temperature environments, it's essential to ensure proper thermal management, such as heat sinking and airflow, to prevent overheating and reduce the risk of thermal shutdown or damage.
To troubleshoot issues with the SIP32433ADN-T1E4, start by verifying the input voltage, current, and frequency are within the recommended specifications. Check for proper thermal management, ensure correct PCB layout and component placement, and verify the input capacitor selection. If issues persist, consult Vishay's application notes and technical support resources for further guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SIP32433ADN-T1E4 Overview

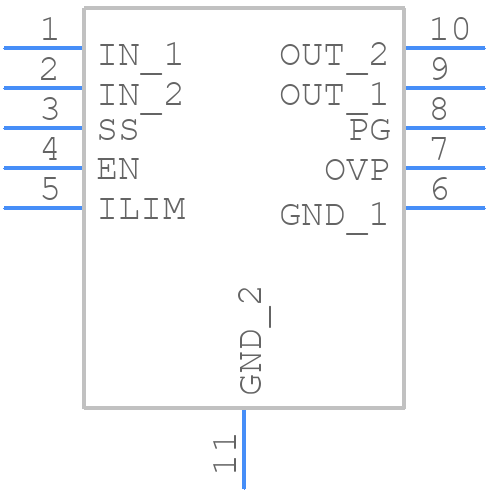

Use the download button to access the SIP32433ADN-T1E4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SIP32,
or try a keyword search, such as Power Management Circuits
