Vishay provides a recommended PCB layout in their application note AN826, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
The input capacitor selection depends on the input voltage, output voltage, and output current. A general guideline is to choose a capacitor with a voltage rating of at least 1.5 times the input voltage, and a capacitance value between 1uF to 10uF. Consult Vishay's application notes and capacitor selection guides for more specific recommendations.
While the datasheet specifies an operating temperature range of -40°C to 150°C, it's essential to note that the device's performance and reliability may degrade above 125°C. Consult Vishay's application notes and thermal management guidelines for more information.
To ensure EMC, follow proper PCB layout and design guidelines, use shielding and filtering components, and consider implementing a common-mode choke or ferrite bead in the input circuit. Consult Vishay's application notes and EMC guidelines for more specific recommendations.
Vishay recommends a soldering profile with a peak temperature of 260°C, a dwell time of 10-30 seconds, and a ramp rate of 3°C/s. Consult Vishay's soldering guidelines and application notes for more specific recommendations.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SIP32434ADN-T1E4 Overview

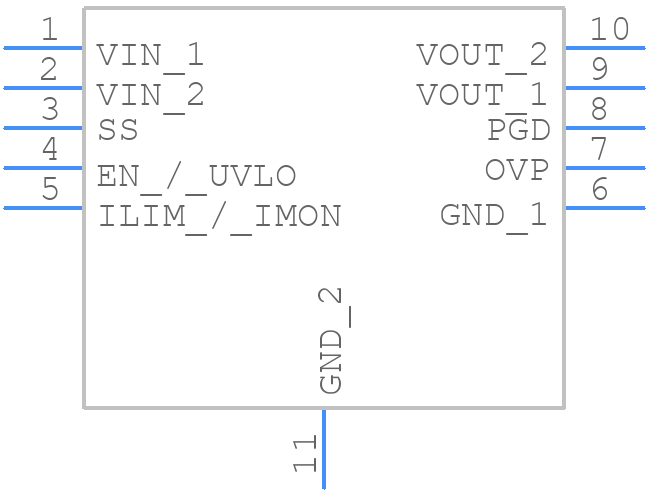

Use the download button to access the SIP32434ADN-T1E4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SIP32,
or try a keyword search, such as Power Management Circuits
