Vishay provides a recommended PCB layout in their application note AN826, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance.
To ensure reliable operation in high-temperature environments, follow the recommended derating curves in the datasheet, and consider using a heat sink or thermal interface material to reduce the junction temperature. Additionally, ensure that the device is operated within the specified maximum junction temperature (Tj) of 150°C.
The maximum allowed voltage on the input pins is the absolute maximum rating of 20V, as specified in the datasheet. Exceeding this voltage can cause permanent damage to the device.
Yes, the SIP32434BDN-T1E4 is suitable for switching regulator applications due to its high-frequency capability and low RDS(on). However, ensure that the device is operated within the specified maximum switching frequency and that the layout is optimized for high-frequency operation.
To calculate the power dissipation of the device, use the formula Pd = I²R, where I is the current through the device and R is the RDS(on) specified in the datasheet. Additionally, consider the thermal resistance (RθJA) and the maximum junction temperature (Tj) to ensure that the device operates within the specified limits.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SIP32434BDN-T1E4 Overview

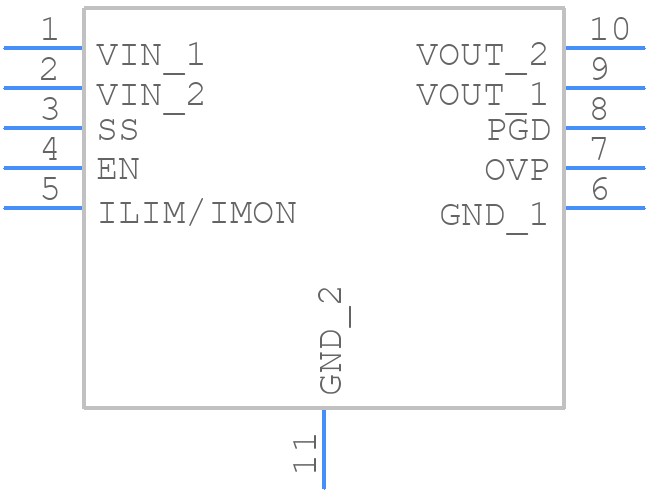

Use the download button to access the SIP32434BDN-T1E4 schematic symbol, PCB footprint, and 3D model.
