The recommended land pattern for SIR698DP-T1-GE3 can be found in the Vishay Intertechnologies' application note 'Land Pattern Recommendations for Vishay's Power MOSFETs' (document number: 41551).
To ensure reliability in high-temperature applications, it is essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow. Additionally, the device should be operated within its specified temperature range and derated accordingly.
To prevent electrostatic discharge (ESD) damage, it is recommended to handle the SIR698DP-T1-GE3 in an ESD-controlled environment, use ESD-protective packaging, and follow proper grounding and wrist strap procedures.
Yes, the SIR698DP-T1-GE3 can be used in a parallel configuration to increase current handling. However, it is essential to ensure that the devices are properly matched, and the layout is designed to minimize current imbalance and thermal mismatch.
The recommended gate drive circuits for the SIR698DP-T1-GE3 can be found in the Vishay Intertechnologies' application note 'Gate Drive Circuits for Power MOSFETs' (document number: 41552).
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SIR698DP-T1-GE3 Overview

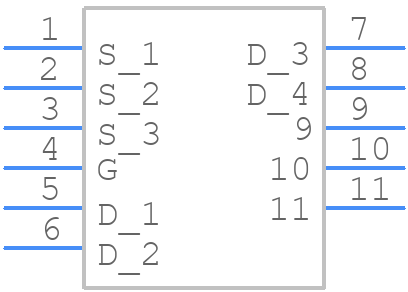

Use the download button to access the SIR698DP-T1-GE3 schematic symbol, PCB footprint, and 3D model.
