The recommended PCB footprint for the SIR870ADP-T1-RE3 is a standard SOD-123 package with a 1.6mm x 0.8mm pad size. It's essential to follow the recommended footprint to ensure proper thermal performance and to prevent overheating.
To ensure proper soldering, use a soldering iron with a temperature range of 250°C to 260°C. Apply a small amount of solder paste to the PCB pads, and then place the component. Use a reflow oven or a hot air gun to solder the component. Avoid overheating, as it can damage the component.
The maximum operating temperature range for the SIR870ADP-T1-RE3 is -55°C to 150°C. However, it's recommended to operate the device within a temperature range of -40°C to 125°C for optimal performance and reliability.
Yes, the SIR870ADP-T1-RE3 is suitable for high-reliability applications. It's built with a robust design and undergoes rigorous testing to ensure its performance and reliability. However, it's essential to follow proper design and manufacturing guidelines to ensure the component meets the required reliability standards.
Handle the SIR870ADP-T1-RE3 with care to prevent damage. Store the components in their original packaging or in a dry, cool place. Avoid exposing the components to moisture, extreme temperatures, or physical stress during shipping and storage.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SIR870ADP-T1-RE3 Overview

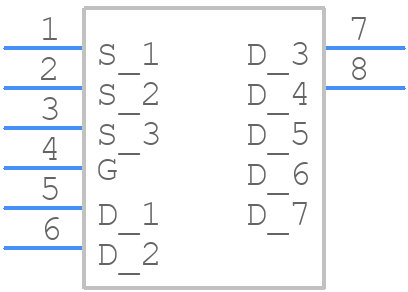

Use the download button to access the SIR870ADP-T1-RE3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SIR87,
or try a keyword search, such as Power Field-Effect Transistors
