Vishay recommends a PCB layout with a thermal pad connected to a large copper area to dissipate heat efficiently. A minimum of 2 oz copper thickness is recommended, and the thermal pad should be connected to a ground plane or a heat sink.
To ensure reliable soldering, follow the recommended soldering profile: peak temperature 260°C, time above 217°C 30s, and time above 183°C 90s. Use a solder with a melting point above 217°C, and avoid using excessive solder or flux.
The maximum allowed voltage derating for the SIRA32DP-T1-RE3 is 80% of the rated voltage. This means that if the device is rated for 32V, the maximum allowed voltage derating would be 25.6V.
Store the SIRA32DP-T1-RE3 in its original packaging or in a similar protective package to prevent mechanical damage and moisture absorption. Avoid exposing the device to temperatures above 30°C or humidity above 60% during storage and shipping.
Vishay recommends using ESD protection devices with a human body model (HBM) rating of at least 2 kV and a machine model (MM) rating of at least 200 V. Additionally, follow proper ESD handling procedures during assembly and testing.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SIRA32DP-T1-RE3 Overview

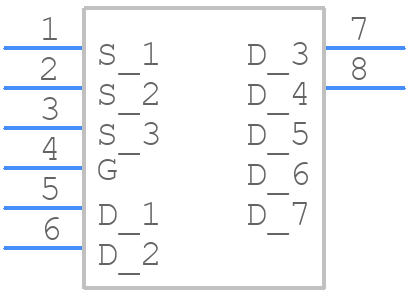

Use the download button to access the SIRA32DP-T1-RE3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SIRA3,
or try a keyword search, such as Power Field-Effect Transistors
