The recommended PCB footprint for the SIS447DN-T1-GE3 is a standard SOT23-3L package with a 1.3mm x 1.3mm body size. A minimum pad size of 0.8mm x 0.8mm is recommended for reliable soldering.
To ensure proper biasing, connect the input pin (pin 1) to a voltage source (e.g., VCC) through a resistor (e.g., 1kΩ) and a capacitor (e.g., 100nF) in parallel. This helps to filter out noise and provides a stable input voltage.
The SIS447DN-T1-GE3 is rated for operation from -40°C to +125°C. However, it's recommended to operate within the -20°C to +85°C range for optimal performance and reliability.
While the SIS447DN-T1-GE3 is designed for general-purpose use, it's not optimized for high-frequency applications. For frequencies above 100 kHz, consider using a specialized high-frequency Schottky diode or consult with a Vishay application engineer for guidance.
To prevent electrostatic discharge (ESD) damage, use proper ESD handling procedures, such as wearing an ESD strap, using an ESD mat, and storing the devices in ESD-protective packaging. Additionally, consider adding ESD protection circuits in your design.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SIS447DN-T1-GE3 Overview

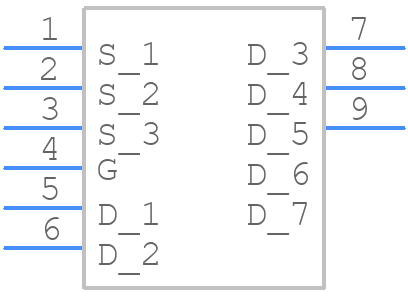

Use the download button to access the SIS447DN-T1-GE3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SIS44,
or try a keyword search, such as Power Field-Effect Transistors
