The recommended PCB footprint for the SISF00DN-T1-GE3 is a rectangular pad with a size of 1.6 mm x 0.8 mm, with a thermal pad size of 2.5 mm x 2.5 mm. It's essential to follow the recommended footprint to ensure proper thermal performance and to prevent overheating.
The SISF00DN-T1-GE3 is rated for operation up to 150°C, but it's essential to consider the derating curves and thermal management to ensure reliable operation. It's recommended to consult with a thermal expert or perform thermal simulations to ensure the device can operate safely in the target environment.
To ensure proper soldering, it's recommended to follow the recommended soldering profile, which includes a peak temperature of 260°C and a dwell time of 10-30 seconds. Additionally, ensure the PCB is clean and free of oxidation, and use a solder with a melting point above 217°C.
The SISF00DN-T1-GE3 should be stored in a dry, cool place, away from direct sunlight and moisture. It's recommended to store the devices in their original packaging or in a shielded bag to prevent electrostatic discharge (ESD) damage. Handle the devices by the body, avoiding touching the leads or die, and use an ESD wrist strap or mat when handling the devices.
The SISF00DN-T1-GE3 is not hermetically sealed, so it's not recommended for use in high-humidity environments. However, if it's necessary to operate in a humid environment, it's essential to apply a conformal coating to protect the device from moisture. Consult with a reliability expert to determine the best approach for your specific application.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SISF00DN-T1-GE3 Overview

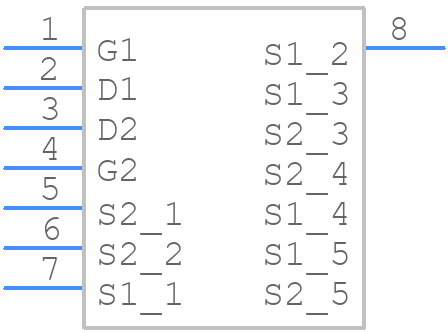

Use the download button to access the SISF00DN-T1-GE3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SISF0,
or try a keyword search, such as Power Field-Effect Transistors
