SIT1566AI-JE-18E-32.768E footprint, schematic symbol and 3D model by SiTime

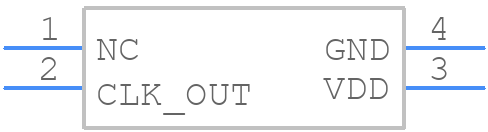

Symbol

PCB Footprints

3D Models

SIT1566AI-JE-18E-32.768E Details

SiTime recommends a symmetrical layout with the oscillator placed near the center of the board, and the output traces should be routed away from the oscillator to minimize noise coupling.
Ensure the power supply voltage is stable and within the recommended range, and the oscillator is properly decoupled with a 0.1uF capacitor between VDD and GND.
The SIT1566AI-JE-18E-32.768E has a maximum frequency deviation of ±20 ppm over the operating temperature range of -40°C to 85°C.
Yes, the SIT1566AI-JE-18E-32.768E is designed to operate in high-vibration environments and meets the requirements of MIL-STD-202, Method 204, Condition D.
The SIT1566AI-JE-18E-32.768E has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and handling to prevent damage.
