SIT3542AIA1C133-SM600.000000 - SiTime

Description: 342 to 725 MHz Endura™ Series I 2C/SPI Programmable Oscillator, 5 x 3.2mm Package

Download SIT3542AIA1C133-SM600.000000 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this SIT3542AIA1C133-SM600.000000 model

Email notifications will be applied after download.

Send part feedback

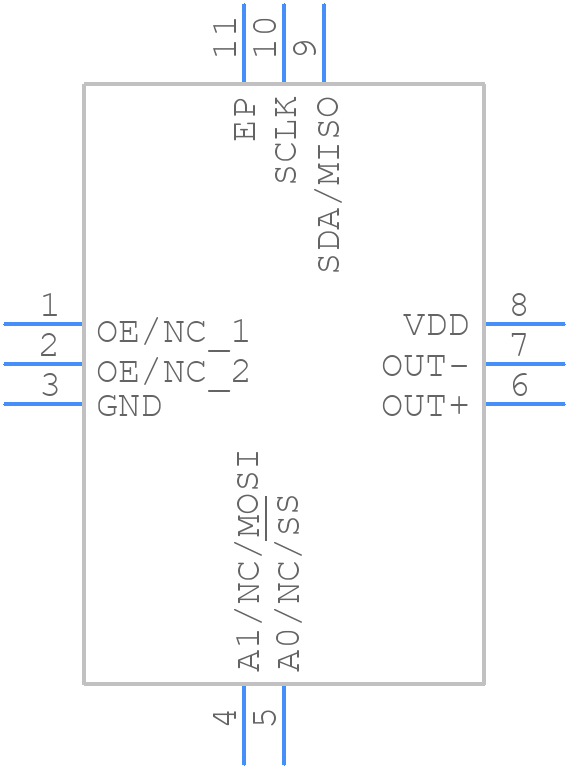

Symbol

SIT3542AIA1C133-SM600.000000 - SiTime - PCB symbol

PCB Footprints

SIT3542AIA1C133-SM600.000000 - SiTime PCB footprint - Other - Other - QFN_5032_10pins_with_CP

3D Models

SIT3542AIA1C133-SM600.000000 - SiTime - 3D model - Other - QFN_5032_10pins_with_CP

Datasheet Download Datasheet
Stock & Prices Price & Stock for SIT3542AIA1C133-SM600.000000
Part Number SIT3542AIA1C133-SM600.000000
Manufacturer SiTime
Pin Count 11
Part Category Crystal or Oscillator
Package Category Other
Footprint Name Other - QFN_5032_10pins_with_CP
Released Date Mar 31, 2023
Last Modified Date Apr 2, 2023 8:20 PM UTC
Pinout / Pin List Click Here (Member Only)

SIT3542AIA1C133-SM600.000000 Details

Manufacturer Part Number:
SIT3542AIA1C133-SM600.000000
Part Life Cycle Code:
Active
Reach Compliance Code:
Unknown
Manufacturer:
SiTime Corporation

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

SIT3542AIA1C133-SM600.000000 Overview

Use the download button to access the SIT3542AIA1C133-SM600.000000 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SIT35, or try a keyword search, such as XO
