SiT5156AECFK-33N0-10.000000 - SiTime

Description: The SiT5156 Super-TCXO™ is a highly flexible, tight-stability oscillator for high-reliability systems in industrial, server and storage, networking and telecom, 5 x 3.2mm Package

Download SiT5156AECFK-33N0-10.000000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

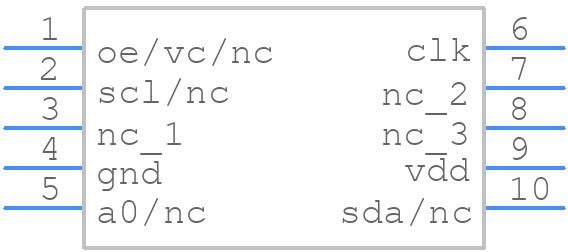

SiT5156AECFK-33N0-10.000000 - SiTime - PCB symbol
click to zoom
PCB Footprints
SiT5156AECFK-33N0-10.000000 - SiTime PCB footprint - Other - Other - SiT5156
click to zoom
3D Models
SiT5156AECFK-33N0-10.000000 - SiTime - 3D model - Other - SiT5156
click to zoom

SiT5156AECFK-33N0-10.000000 Details

  • Manufacturer Part Number:

    SIT5156AECFK-33N0-10.000000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, Taiwan, Thailand

  • Manufacturer:

    SiTime Corporation

  • YTEOL:

    7.55

  • Aging:

    1 PPM/FIRST YEAR

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    0.5%

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    10

  • Operating Frequency-Nom:

    10 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    CLIPPED SINE

  • Output Impedance:

    10000 Ω

  • Output Level:

    0.8 V

  • Package Body Material:

    CERAMIC

  • Package Equivalence Code:

    LCC10,.12X.2,53/47/43

  • Physical Dimension:

    5.15mm x 3.35mm x 1.06mm

  • Supply Voltage-Max:

    3.63 V

  • Supply Voltage-Min:

    2.97 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    GOLD OVER NICKEL

SiT5156AECFK-33N0-10.000000 Frequently Asked Questions (FAQs)

  • SiTime provides a recommended PCB layout guide for their oscillators, which includes guidelines for pad layout, trace routing, and component placement to ensure optimal performance and minimize noise.
  • The SIT5156AECFK-33N0-10.000000 is a fixed-frequency oscillator, and its output frequency is set to 10.000000 MHz. It is not possible to configure the output frequency of this specific part.
  • The SIT5156AECFK-33N0-10.000000 has an operating temperature range of -40°C to +85°C, as specified in the datasheet.
  • The startup time and stability of the oscillator can be affected by factors such as power supply noise, PCB layout, and component selection. SiTime recommends following their application notes and guidelines for ensuring stable startup and operation of their oscillators.
  • The SIT5156AECFK-33N0-10.000000 is designed to meet the requirements of various industrial and commercial applications, but it may not be suitable for high-vibration or high-shock environments without additional testing and validation. Engineers should consult with SiTime or perform their own testing to ensure the oscillator meets their specific requirements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SiT5156AECFK-33N0-10.000000 Overview

Use the download button to access the SiT5156AECFK-33N0-10.000000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SiT51, or try a keyword search, such as TCXO
