SiT5157AE-FK-33VT-100.000000 - SiTime

Description: 60 MHz to 220 MHz, ±0.5 to ±2.5 ppm, Elite Platform Super-TCXO, 5.0 mm x 3.2 mm Package

Download SiT5157AE-FK-33VT-100.000000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

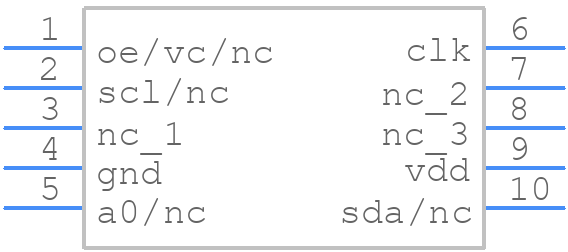

Symbol
SiT5157AE-FK-33VT-100.000000 - SiTime - PCB symbol
click to zoom
PCB Footprints
SiT5157AE-FK-33VT-100.000000 - SiTime PCB footprint - Other - Other - SiT5157
click to zoom
3D Models
SiT5157AE-FK-33VT-100.000000 - SiTime - 3D model - Other - SiT5157
click to zoom

SiT5157AE-FK-33VT-100.000000 Details

  • Manufacturer Part Number:

    SIT5157AE-FK-33VT-100.000000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CQFN-10

  • Country Of Origin:

    Malaysia, Taiwan, Thailand

  • Manufacturer:

    SiTime Corporation

  • YTEOL:

    6.5

  • Additional Feature:

    MIL-STD-883F

  • Aging:

    1 PPM/YEAR

  • Control Voltage-Max:

    2.97 V

  • Control Voltage-Min:

    0.33 V

  • Fall Time-Max:

    1.9 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Deviation/Pullability:

    6.25 ppm

  • Frequency Stability:

    0.5%

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    10

  • Operating Frequency-Nom:

    100 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    LVCMOS

  • Output Load:

    15 pF

  • Package Body Material:

    CERAMIC

  • Package Equivalence Code:

    LCC10,.12X.2,58/52/48

  • Physical Dimension:

    5.15mm x 3.35mm x 1.06mm

  • Rise Time-Max:

    1.9 ns

  • Supply Current-Max:

    66 mA

  • Supply Voltage-Max:

    3.63 V

  • Supply Voltage-Min:

    2.97 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    55/45 %

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier

SiT5157AE-FK-33VT-100.000000 Frequently Asked Questions (FAQs)

  • SiTime provides a recommended PCB layout guide in their application note AN10005, which includes guidelines for pad layout, trace routing, and decoupling capacitors to ensure optimal performance and minimize jitter.
  • The SIT5157AE-FK-33VT-100.000000 is a programmable oscillator, and the frequency can be configured using SiTime's TimeView software or by using the part's I2C interface. Consult the datasheet and application notes for specific programming instructions.
  • The SIT5157AE-FK-33VT-100.000000 has an industrial temperature range of -40°C to +85°C, but it can be customized for extended temperature ranges (e.g., -55°C to +125°C) upon request. Contact SiTime for more information.
  • Yes, the SIT5157AE-FK-33VT-100.000000 is designed for high-reliability applications and meets the requirements of various industries, including aerospace, defense, and industrial automation. It is also compliant with relevant standards, such as MIL-STD-883 and IEC 60068.
  • SiTime offers radiation-hardened versions of their oscillators, including the SIT5157AE-FK-33VT-100.000000. Contact SiTime for more information on their radiation-hardened products and testing procedures.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SiT5157AE-FK-33VT-100.000000 Overview

Use the download button to access the SiT5157AE-FK-33VT-100.000000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SiT51, or try a keyword search, such as TCVCXO
